Understanding the Ultrasonic Cleaning Process

The ultrasonic cleaning process uses high-frequency sound waves (37 kHz in the case of the T 570/H) to create microscopic bubbles in a liquid solution. This phenomenon, known as cavitation, enables the device to remove contaminants like grease, oil, dust, and other particles from surfaces. Whether it’s metal parts, delicate glassware, or intricate medical tools, ultrasonic cleaning ensures precision without damaging the items.

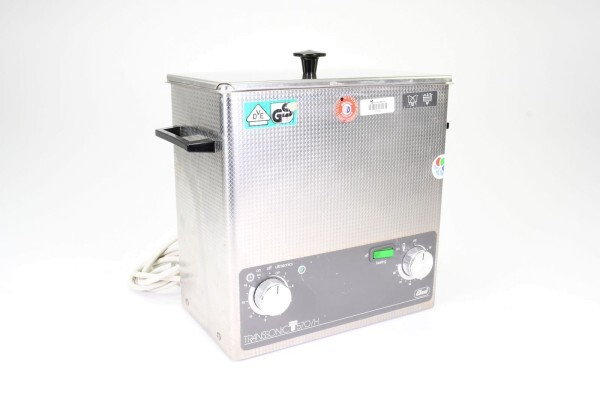

Key Features of ELMA T 570/H

∙ Ultrasonic Frequency: 37 kHz
The T 570/H operates at a frequency of 37 kHz, which is ideal for cleaning a wide range of materials without damaging delicate surfaces.

∙ Tank Capacity: 6.9 Liters
The device features a spacious 6.9-liter tank, making it suitable for cleaning medium-sized items like tools, mechanical parts, and laboratory equipment.

∙ Heating Capability
The built-in heating system allows for temperature control during the cleaning process, which improves the removal of grease and other stubborn contaminants.

∙ Multiple Cleaning Modes

o Normal Mode: Perfect for general cleaning tasks.

o Sweep Mode: Ensures uniform distribution of ultrasonic energy, especially for challenging surfaces.

o Degas Mode: Quickly removes trapped air from the cleaning solution for enhanced efficiency.

∙ Durable Construction
Made from high-quality stainless steel, the ELMA T 570/H is built to last, ensuring reliability and ease of maintenance.

Applications of ELMA T 570/H

This versatile ultrasonic cleaning device is used across various industries:

 Healthcare

o Sterilizing surgical instruments and medical tools.

o Cleaning dental equipment and prosthetics.

 Manufacturing

o Removing grease, oil, and dust from mechanical parts.

o Cleaning precision instruments and components.

 Laboratories

o Cleaning glassware and delicate lab tools.

o Preparing equipment for sensitive experiments.

 Jewelry and Watches

o Restoring the shine of jewelry by removing dirt and tarnish.

o Cleaning intricate watch components.

How to Use ELMA T 570/H

∙ Fill the Tank
Pour the appropriate cleaning solution into the 6.9-liter tank. Ensure the liquid covers the items you intend to clean.

∙ Select the Cleaning Mode
Choose the cleaning mode (Normal, Sweep, or Degas) based on the type of contaminants and materials being cleaned.

∙ Set the Temperature
Adjust the temperature using the heating feature for enhanced cleaning efficiency, particularly for greasy or oily surfaces.

∙ Start the Ultrasonic Process
Turn on the device and let the ultrasonic waves work their magic. The cavitation process will remove dirt and contaminants even from hard-to-reach areas.

∙ Rinse and Dry
After the cleaning cycle is complete, rinse the items with water and dry them as needed.
