Why this system matters
TIn today’s electronics-manufacturing landscape, automatic optical inspection (AOI) is no longer optional — it’s mission-critical. The ability to inspect PCBs with increasingly fine pitch components, complex 3D assemblies and demanding quality standards means inspection systems must deliver more than ever.

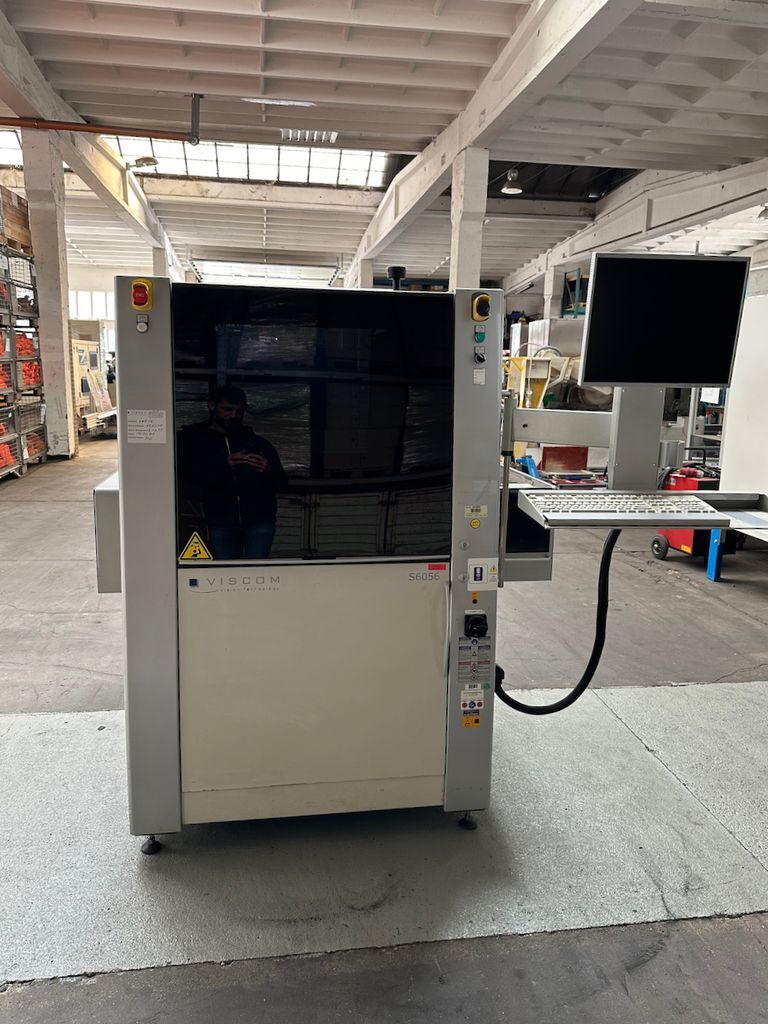

The Viscom S 6056 series is positioned as a high-end, 3D AOI solution designed for exactly these challenges. The DS1W version offers dual-track capability, modular camera technology and very high resolution and precision.
Key features and capabilities
Here are some of the standout specifications and functional benefits of the S 6056 DS1W:
Uses Viscom’s proprietary XM/3D camera technology: this includes orthogonal and angled view cameras, fringe-projection 3D modules, enabling true 3D measurement of features like lifted leads, chip coplanarity and fine-pitch components.
Adjustable resolution: Standard resolution around 16 µm, with “OnDemandHR” switch-to high resolution mode (8 µm) for ultra-fine inspection.
Inspection field: Example specification shows a field of view of 40 mm×40 mm (1.57″×1.57″) in the DS1W version.
Dual-track transport (DS1W) for higher throughput: accelerates inspection without bottlenecking the PCB flow.
Speed: For the DS1W version typical inspection speeds are in the range of 40-60 cm²/s (no handling time) — meaning high throughput potential in production lines.
Handling specs: Example product listing shows: rated voltage 230/400 V, 50-60 Hz, power ~2.5 kW; floor footprint dimensions ~1528 × 1650 × 1692 mm; weight approx. 1550 kg.
What this means for Indian electronics/manufacturing users.
- Higher quality and yield: With 3D inspection capabilities, defects that are hard to detect with conventional 2D AOI (such as lifted leads, tombstones, micro-coplanarity issues) can be caught earlier — reducing rework and boosting yield.
- Versatility for PCB types: From fine-pitch SMT boards, compact modules, multi-layer PCBs — the system’s resolution and modular camera options mean you’re equipped for future demands.
- Line-integration ready: The S 6056 supports interfaces like SMEMA/SV70, comes with automated PCB handling and is suitable for inline integration — important for mid-to-high volume electronics manufacturing.
- Cost-effective for mature lines: The model being from 2012 and available used offers a good opportunity for cost-sensitive manufacturers in India looking to upgrade AOI without full-cost new equipment.
- Supports Industry 4.0 / Smart-Factory moves: With remote diagnostics, off-line programming, SPC-capable software options, the system can align with smart-manufacturing aspirations.
Use-case scenarios
SMT assembly lines producing mobile devices, IoT modules, automotive electronics: for verifying component placement, solder joints and volume defects.
PCBA lines with double-sided assemblies or mixed technology (SMT + TH) where 3D inspection adds significant value.
Quality assurance labs requiring an AOI system capable of handling both standard PCBs and complex modules with demanding inspection specs.
Buying-considerations & tips
- Ensure that the system’s software (programming interface, verification station) is compatible with your workflow and that you have local service/support for Viscom systems in India.
- Check the condition of optics and camera modules (since used systems may need calibration or replacement).
- Verify whether the fringe-projection 3D module is included, as this enhances the 3D measuring capability significantly.
- Plan the PCB carrier/handling interfaces: ensure the transport height, clearance and width adjustment match your existing line.
- Consider spare-parts availability and lead time for consumables (lighting modules, cameras) especially for older machines.
- Make sure footprint/space, power (230/400V), pneumatics (4-6 bar) and logistics (weight approx 1.5 ton) fit your plant layout.
Final takeaway
If you’re looking to significantly upgrade your inspection capabilities — particularly for high-complexity assemblies and demanding quality targets — the Viscom S 6056 DS1W stands out as a robust choice. Its 3D inspection capabilities, modular camera design, high throughput and dual-track handling make it a strong candidate for electronics manufacturing and quality-driven production in India. A used-equipment offer can provide cost-effective access to this high-end capability.
