Metalworking Machines Details

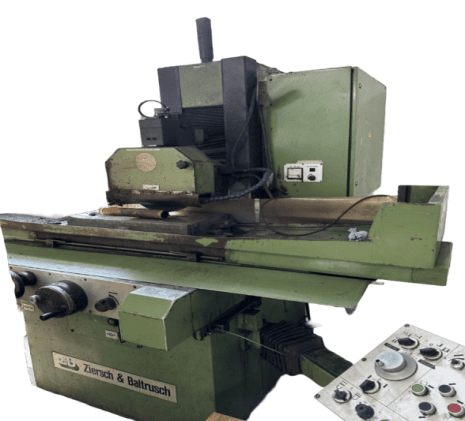

Surface Grinding Machine
Surface Grinding Machine
Machine Type : Surface Grinding Machine
Manufacturer : Ziersch&Baltrusch
Model Number : Formmaster 6/30
The ZIERSCH & BALTRUSCH Formmaster 6/30 is a precision surface grinding machine designed for high accuracy and efficiency in metalworking applications. The machine features both automatic and manual modes, making it versatile for different grinding tasks. Its sturdy construction minimizes vibrations, contributing to precision Condition•
Condition : Used
Condition Description: Excellent
Technical Specifications
Year of Manufacture: 1989 Power Requirements: 5.5 kW (7.5 HP).
Dimensions and Weight: Approximately 2,200 x 1,300 x 1,800 mm (86.6" x 51.2" x 70.9") & 1,500 kg (3,307 lbs)
Table Size: 600 x 300 mm (23.6" x 11.8")
Max Grinding Length: 600 mm (23.6")
Max Grinding Width: 300 mm (11.8")
Max Workpiece Height: Approximately 200 mm (7.9")
Grinding Wheel Diameter: 400 mm (15.7")
Certification and Compliance
Certifications: CE, ISO.
Safety Standards: DIN, EMC

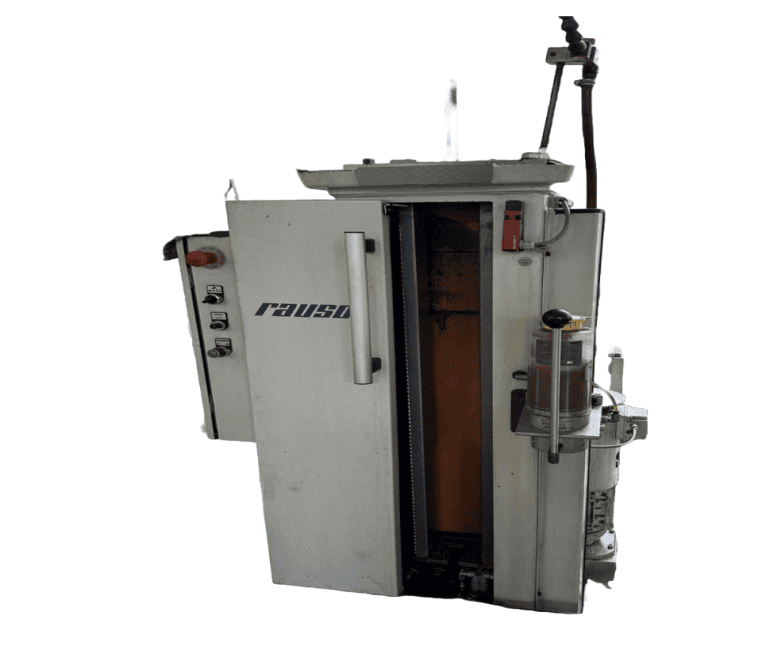

Vertical Broaching Machine
Machine Type : Vertical Broaching Machine
Manufacturer : Raush
Model Number : R3/1000
The Rausch RS 3/1000 vertical broaching machine is designed for precision machining operations, particularly for creating intricate profiles and features on workpieces. Its vertical design allows for efficient handling of parts, especially larger ones, while the broaching process itself involves a toothed tool that is pulled or pushed through the material, removing material in a controlled manner.
Condition : Used
Condition Description: Excellent
Technical Specifications
Year of Manufacture: 1960
Power Requirements: 5.5 kW (7.5 HP)
Dimensions and Weight: Approximately 2,200 x 1,500 x 2,000 mm (86.6" x 59" x 78.7") & 2,500 kg (5,511 lbs)
Broaching Stroke Length: 1,000 mm (39.4")
Max Workpiece Height: Approximately 400 mm (15.7")
Table Size: 1,200 x 600 mm (47.2" x 23.6")
Max Work piece Weight: Around 1,500 kg (3,307 lbs)
Certification and Compliance
Certifications: CE, ISO.
Safety Standards: DIN, EMC.

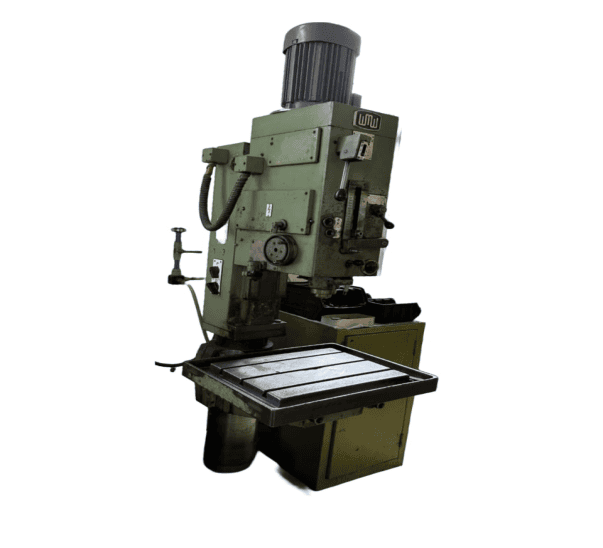

Column Drilling Machine
Machine Type : Column drilling machine
Manufacturer : WMW
Model Number: BS/29AI
The WMW BS/20AI column drilling machine is a versatile and robust tool designed for a wide range of drilling applications. It features a sturdy column design that provides stability and precision during operation. This model typically includes an adjustable spindle speed, allowing for optimal performance on various materials.
Condition : Used
Condition Description: Excellent
Technical Specifications
Year of Manufacture: NA
Power Requirements: 7.8 kW
Dimensions and Weight: Height - 3000 mm, Width - 770 mm, Length - 1200 Mm, Saw / Metal Saw & 1650 kg
Spindle Speed: 32-1400 RPM
Quill Travel: 280 mm
Drilling Capacity: Up to 50 mm
Table Size: 500 x 630 mm
Certification and Compliance
Certifications: CE, ISO.
Safety Standards: DIN, EMC

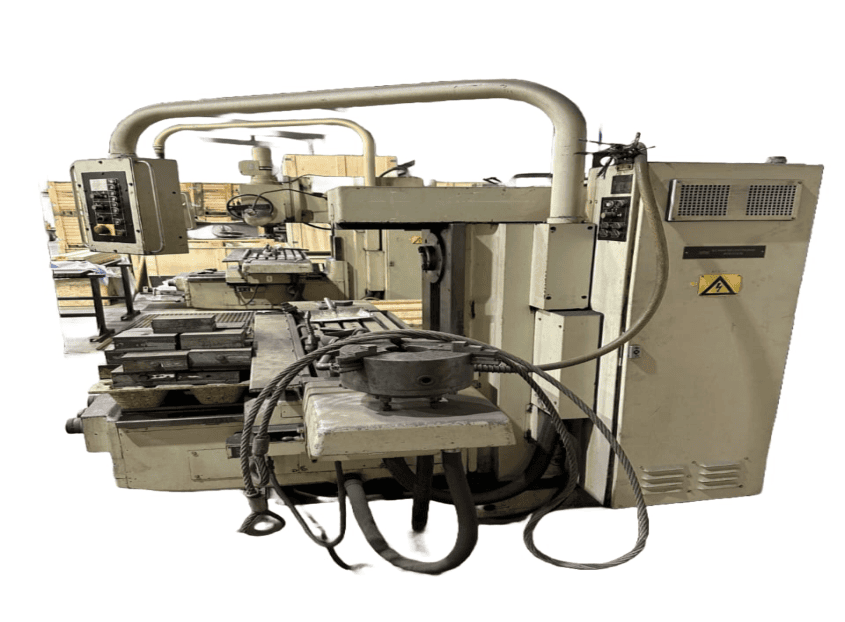

Surface Grinding Machine
Machine Type : Surface Grinding Machine
Manufacturer : VEB Fritz Heckert
Model Number : FU 315/E
The VEB Fritz Heckert FU 315/E surface grinding machine is a robust and precise machine designed for grinding flat surfaces and achieving high tolerances on various workpieces. This model features a powerful spindle motor and a heavy-duty grinding table, which can accommodate a range of materials, including metals and composites.
Condition : Used
Condition Description: Excellent
Technical Specifications
Year of Manufacture: NA
Power Requirements: 5.5 kW (7.5 HP) •
Dimensions and Weight: Varies, but generally around 3,000 x 1,500 x 1,800 mm (118 x 59 x 71 inches) & Approximately 2,000 kg (4,409 lbs)
Table Size: 315 x 1,200 mm (12.4" x 47.2")
Max Grinding Length: 1,200 mm (47.2")
Max Grinding Width: 315 mm (12.4")
Max Workpiece Height: Typically around 250 mm (9.8") on setup.
Grinding Wheel Diameter: 400 mm (15.7")
Certification and Compliance
Certifications: CE, ISO.
Safety Standards: DIN, EMC.

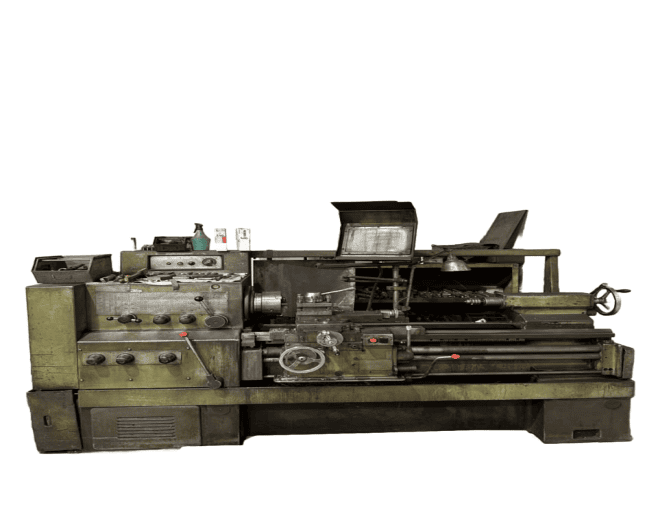

Center Lathe
Center Lathe
Machine Type : Center Lathe
Manufacturer :
Model Number :
A center lathe, often simply referred to as a lathe, is a versatile machine tool primarily used for shaping and machining cylindrical workpieces. It operates by rotating the workpiece against a stationary cutting tool, allowing for operations such as turning, threading, drilling, and facing.
Condition : Used
Condition Description: Excellent
Technical Specifications
Year of Manufacture: NA
Power Requirements: NA
Dimensions and Weight: NA
Certification and Compliance
Certifications: NA
Safety Standards: NA

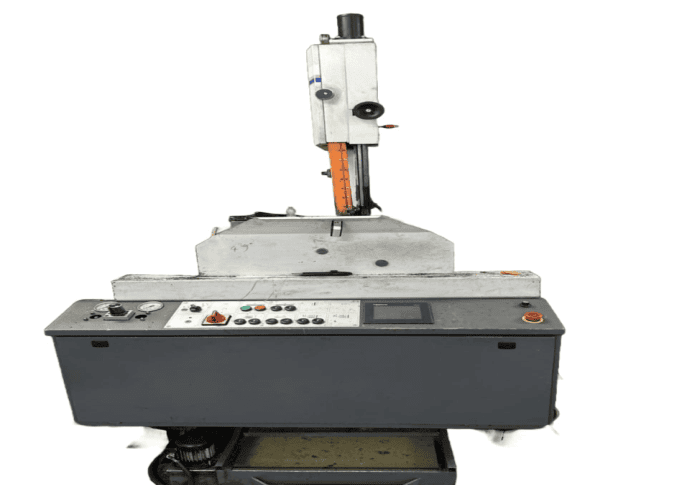

Band saw / Metal saw
Band saw / Metal saw
Machine Type : Band Saw / Metal Saw
Manufacturer : Bauer
Model Number : NA
The Bauer band saw, specifically designed for metal cutting, is a powerful and efficient machine used in various industrial applications. This type of saw utilizes a continuous band of toothed metal to make precise cuts through various materials, including steel, aluminum, and other alloys.
Condition : Used
Condition Description: Excellent
Technical Specifications
Year of Manufacture: NA
Power Requirements: 10 Amp
Dimensions and Weight: 16 lbs (portable)
Cutting Capacity: 5 in. x 5 in. deep cut
Variable Speed Control: Yes
Certification and Compliance
Certifications: CE, ISO.
Safety Standards: DIN, EMC
