OERLIKON LEYBOLD 11375, WSU 501 H, Ruvac Roots vacuum pump
₹220,000.00
Tags:
LW27823
Choose Quantity
Product Details

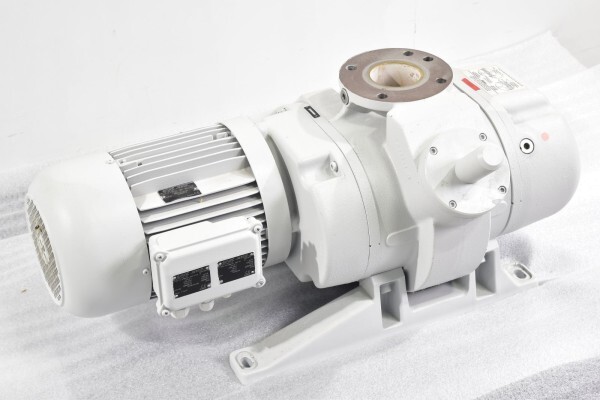

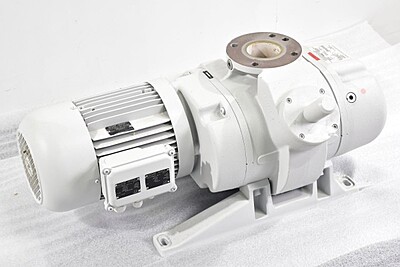

Oerlikon Leybold Vacuum GmbH RUVAC Roots vacuum pump, WSU 501 H, 113 75
Model: 11375
Type: WSU501H
Operation with PFPE.
Note:The pumps are heavily soiled, further details can be seen in the pictures.
Technical specifications:Connection flange: DN 100 ISO-K
Nominal suction capacity (50 Hz): 505 m?/h
Nominal suction capacity (60 Hz): 606 m?/h
Max. permissible differential pressure during continuous operation (50 Hz): 80 mbar
Max. permissible differential pressure during continuous operation (60Hz): 80 mbar
Leakage rate, integral: < 1 x 10-4 mbar x l/s
Nominal voltage: 3-ph.: 200-230/400V AC, 50Hz / 200-265/460V AC, 60Hz
Motor power (50Hz): 1.6-2.2 kW
Motor power (60Hz): 1.6-2.4 kW
Motor: VUF112M/2-110
