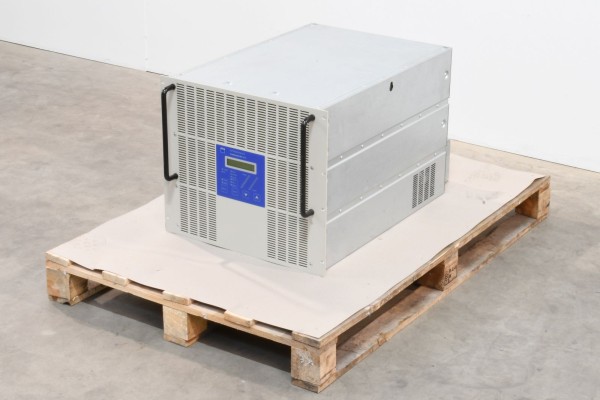

TRUMPF TruPlasma DC 3050, DC plasma generator, Rev. V 03_00
₹518,700.00
Tags:
LW34380
Choose Quantity
Product Details
TRUMPF H�ttinger GmbH + Co. KG DC plasma generator, Rev. V 03_00, TruPlasma DC 3050
Model: TruPlasmaDC3050
Condition: Used
Technical data: 3x 400V AC
50/60Hz
125 A
50kW
General:
The TruPlasma DC 3000 series generators deliver continuous power over a wide range of load settings and have proven themselves in harsh industrial use. This makes them ideal for coating processes that require reliability and performance: the production of solar cells and the coating of architectural glass. The generators are also key components in the coating of hard materials as well as in decorative and optical coating processes.
Input data Mains voltage: 3x 400 V �10%
Mains frequency: 50/60 Hz �5%
Initial data Output power: 50 kW
Output current: 125A
Interfaces Analogue/Digital: 25-pin Sub-D (air-cooled)
RS 232/RS 485: 9-pin Sub-D
Profibus: 9-pin Sub-D
DeviceNet: 5-pin DeviceNet connection
EtherCAT: 2 x RJ45
Cooling data Cooling system: forced air cooling/fan control
Max. air inlet temperature: +35�C
Protection class: IP20
Ambient Condition: s temperature: -25...+55�C
Dimensions (WxHxD): 482 x 411 x 710 mm
