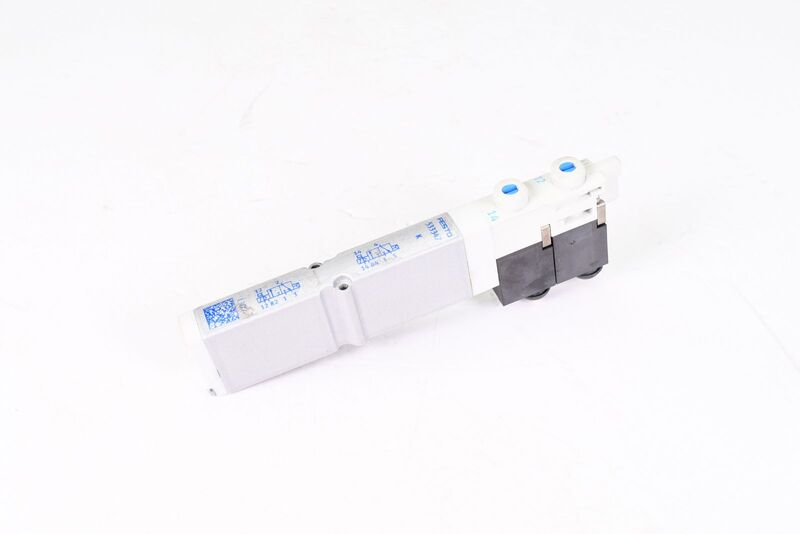

Festo Vertrieb GmbH & Co. KG Solenoid valve, 533347
Model:
533347
EAN/GTIN:
4052568166489
Condition:
Used
General:
Valve function 2x3/2-way, monostable, closed
Type of actuation Electric
Valve size 10mm
Standard nominal flow rate (standardised to DIN 1343) 230l/min
Operating voltage 24V DC
Operating pressure 0.3-1MPa, 3-10bar
Design Piston gate valve
Type of reset Pneumatic spring
Approval c UL us - Recognized (OL)
Degree of protection IP65 To IEC 60529
Sealing principle Soft
Mounting position optional
Manual override Detenting Non-detenting
Type of piloting Pilot actuated
Flow direction Non-reversible
lap Overlap
Signal status display
Pilot pressure 0.3-0.8MPa, 3-8bar
Suitability for vacuum no
Standard nominal flow rate with QS-6 230l/min
Switching time off 20ms
Switching time on 10ms
Max. positive test pulse with 0 signal 400�s
Max. negative test pulse with 1 signal 200�s
Permissible voltage fluctuations +/- 25%
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
