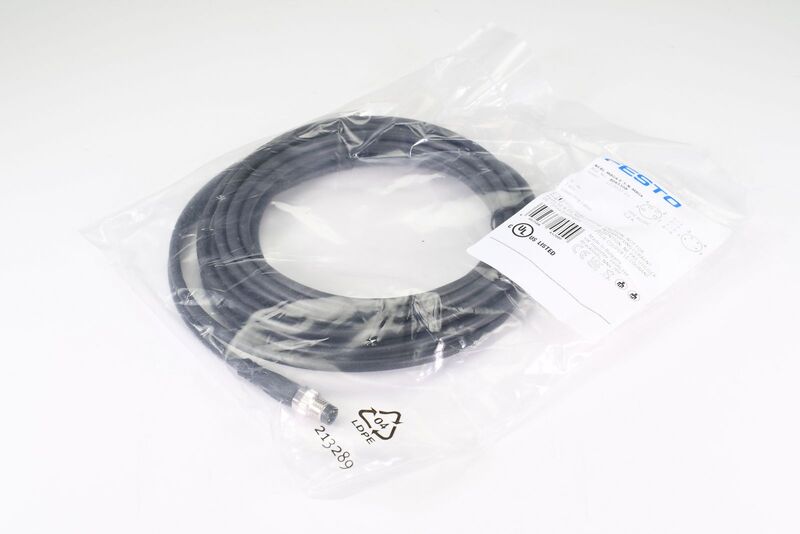

Festo Vertrieb GmbH & Co. KG Connecting cable, L=5m, 8065108, NEBL M8G4 E 5 N M8G4
Model:
8065108
Type:
NEBLM8G4E5NM8G4
EAN/GTIN:
4052568457099
Condition:
New
Technical Data:
30V AC/DC
5.2A
General:
Conforms to standard EN 61076-2-104
Approval c UL us listed (OL)
Electrical connection 1, function Field device side
Electrical connection 1, design Round
Electrical connection 1, connection type Socket
Electrical connection 1, cable outlet Straight
Electrical connection 1, connector system M8x1, A-coded, to EN 61076-2-104
Electrical connection 1, number of connections/cores 4
Electrical connection 1, used connections/cores 4
Electrical connection 1, type of mounting Screw-type lock with hexagon A/F 9 mm and longitudinal knurl
Electrical connection 1, connection pattern 00991872
Electrical connection 2, function Controller side
Electrical connection 2, design Round
Electrical connection 2, connection type Plugs
Electrical connection 2, cable outlet Straight
Electrical connection 2, connector system M8x1, A-coded to EN 61076-2-104
Electrical connection 2, number of connections/cores 4
Electrical connection 2, used connections/cores 4
electrical connection 2, type of mounting Screw-type lock with hexagon A/F 9 mm and longitudinal knurl
Electrical connection 2, connection pattern 00991171
Operational voltage range DC 0-30V
Nominal operating voltage DC 24V
Operational voltage range AC 0-30V
Nominal operating voltage AC 24V
Current rating at 40�C 5.2A
Immunity to surge 0.8kV
Protective conductor connection Not available
Shielding no
cable length 5m
cable characteristic Suitable for energy chains
