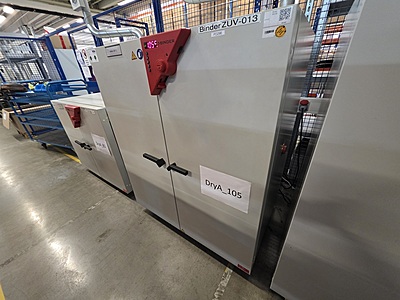

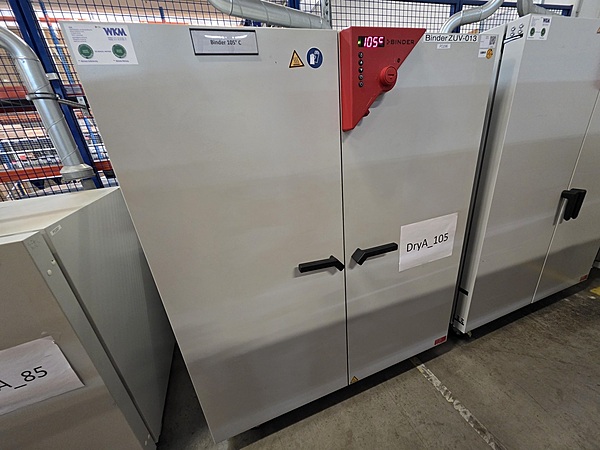

BINDER FED 720, Drying and heating chamber
Non-returnable
₹3,500,000.00
Article number:
DV10142
Manufacturer:
BINDER
Manufacturer number:
FED 720
YoM:
2018
Condition:
Used
Location
Germany
Availability:
immediately
Choose Quantity
Product Details
Binder GmbH Drying and heating chamber with forced convection and enhanced timer functions, FED 720
Model: FED720
Year of manufacture: 2018
General:
High-quality convection drying oven with precise electronic temperature control. Uniform temperature distribution thanks to convection system, intuitive controls, low maintenance. Typically used for drying and heating processes in laboratories and production.
Technical data:
Rated Voltage: 400V AC
Power frequency: 50/60Hz
Nominal power: 4.5kW
Unit fuse: 16A
Temperature range: +12°C above ambient temperature to 300°C
Temperature uniformity at 150 °C: ± 2.0K
Temperature fluctuation at 150 °C: ± 0.6K
Heating up time to 150 °C: 25min
Recovery time after door was opened for 30 s at 150°C: 6min
Air change rate at 150 °C: 5x/h
Interior volume: 741l (26cu.ft.)
Load per rack: 45kg (99lbs)
Permitted load: 315kg (694lbs)
Energy consumption at 150 °C: 800Wh/h
Max. Number of shelves: 16
External dimensions:
Width: 1.165mm (39.37in)
Height: 1.590mm (51.18in)
Depth: 870mm (34.25in)
Internal dimensions:
Width: 1.000mm (39.37in)
Height: 1.300mm (51.18in)
Depth: 570mm (22.44in)
Important note:
The wheels are attached/present.
