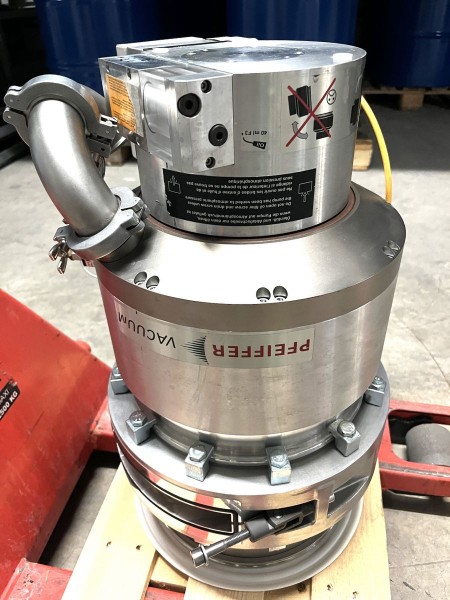

PFEIFFER VACUUM PM P03 020 G, TPH 2101 P, Turbomolecular Pump with accessories
₹100,000.00
Pfeiffer Vacuum PM P03 020 GA TPH 2101 P + TIC 250
Article number:
DV10078
Manufacturer:
Pfeiffer Vacuum
Manufacturer number:
PM P03 020 GA
Type:
TPH 2101 P + TIC 250
Serial number:
14219214
Hours of operation:
ca. 13.000h
YoM:
2008
Condition:
Used
Location
Germany
Availability:
immediately
Choose Quantity
Product Details
Pfeiffer Vacuum GmbH Turbomolecular pump with electronic drive unit, ProfibusDP gateway and accessories, PM P03 020 GA, TPH 2101 P + TIC 250
Model Turbomolecular Pump: PMP03020G, TPH2101P
Model Gateway: TIC250
Turbo molecular pump:
Serial number: 14219214
YoM: 2008
Nominal connection size inlet: DN 250 ISO-K
Nominal connection size outlet: DN 40 ISO-KF
Flood connection: G1/8"
Rated speed: 31.500/min (525Hz)
Pumping speed N2: 1.900l/s
Max. Prevacuum pressure N2: 1,5mbar
Max. Prevacuum pressure He: 1,0mbar
Max. Prevacuum pressure H2: 0,5mbar
Oil: PM 016 144-T
Note on condition:
1. statements on the operation hour time is about 13,000h with about 1,600 start-up and shut-down.
2. process gases: nitrogen and argon
3. process dusts: chromium nitrite and steel 100Cr6
4. the pump was stored fully functional in 2018 and externally cleaned.
