ASYS MPS 100, VEGO Dynamic, Magazine buffer, YoM2013
₹100,000.00

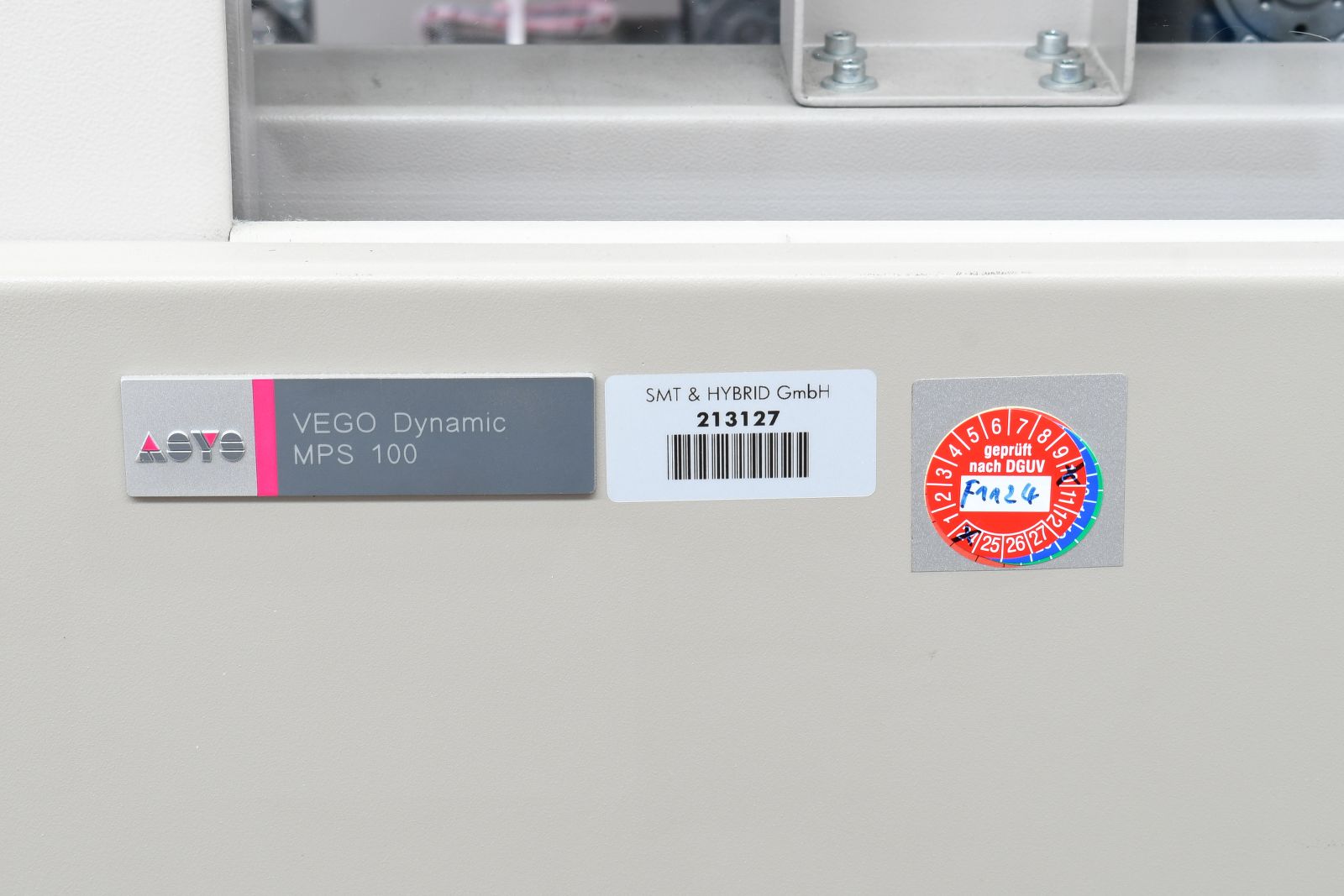

ASYS MPS 100 VEGO Dynamic
Article number: DV10093
Manufacturer: ASYS
Manufacturer number: MPS 100
Type: VEGO Dynamic
Serial number: 047953
YoM: 2013
Condition:Used
Location
Germany
GermanyAvailability:immediately
Data Sheet:Click Here
Choose Quantity
Product Details

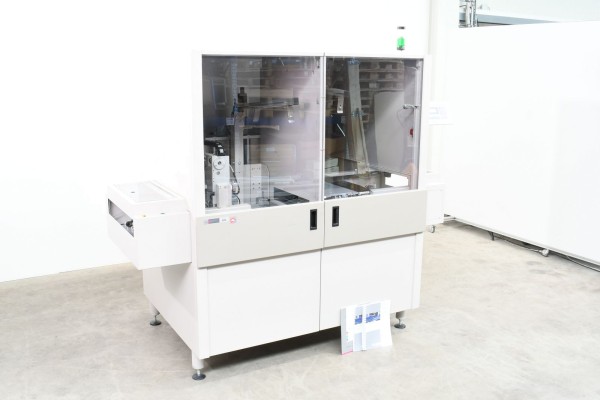

ASYS Automatisierungssysteme GmbH Closed process buffer with two PCB magazines, VEGO Dynamic, MPS 100
Model: MPS100
Type: VEGO Dynamic
Year of manufacture: 2013
General information:

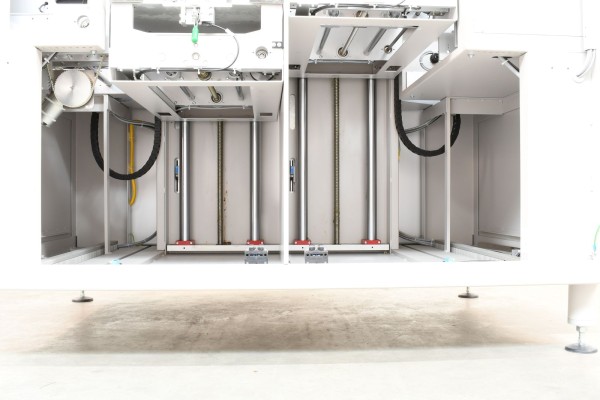

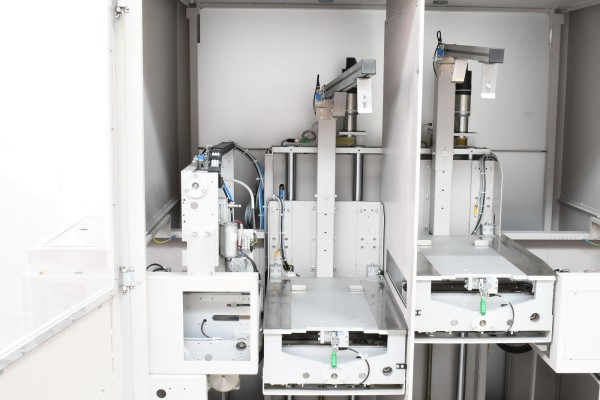

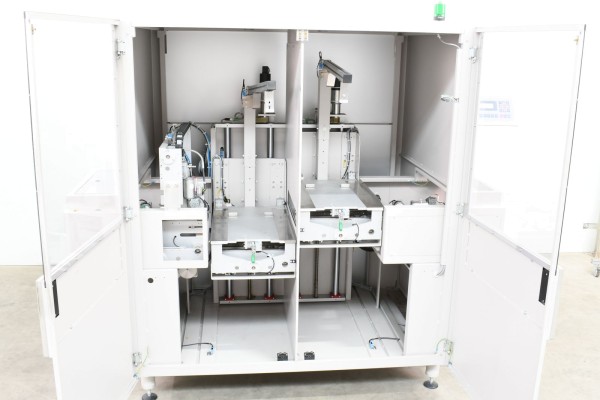

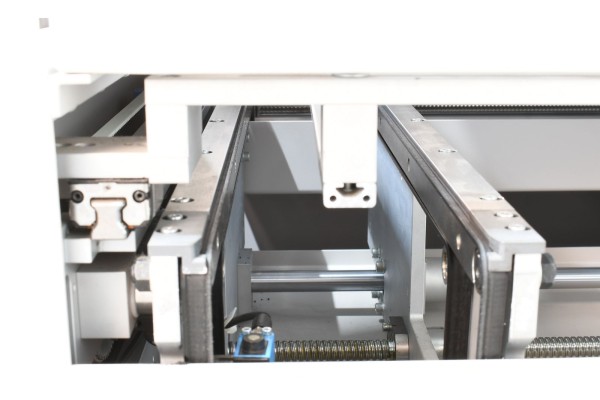

The buffer combines the functionality of magazine loader and unloader in one unit. Incoming PCB’s can be stored in a magazine and on demand from a following unit they can be pushed out and transferred. The unit is equipped with a conveyer underneath the magazine for pass-through mode. This unit is also equipped with two magazines and two magazine axles.
This allows a high buffer capacity, three sorting possibilities and also the possibility of a separate use for each magazine. For example the unit can be used with the first magazine as a storage unit and the second magazine as a loading unit, both functioning independently of each other.
Used Options:

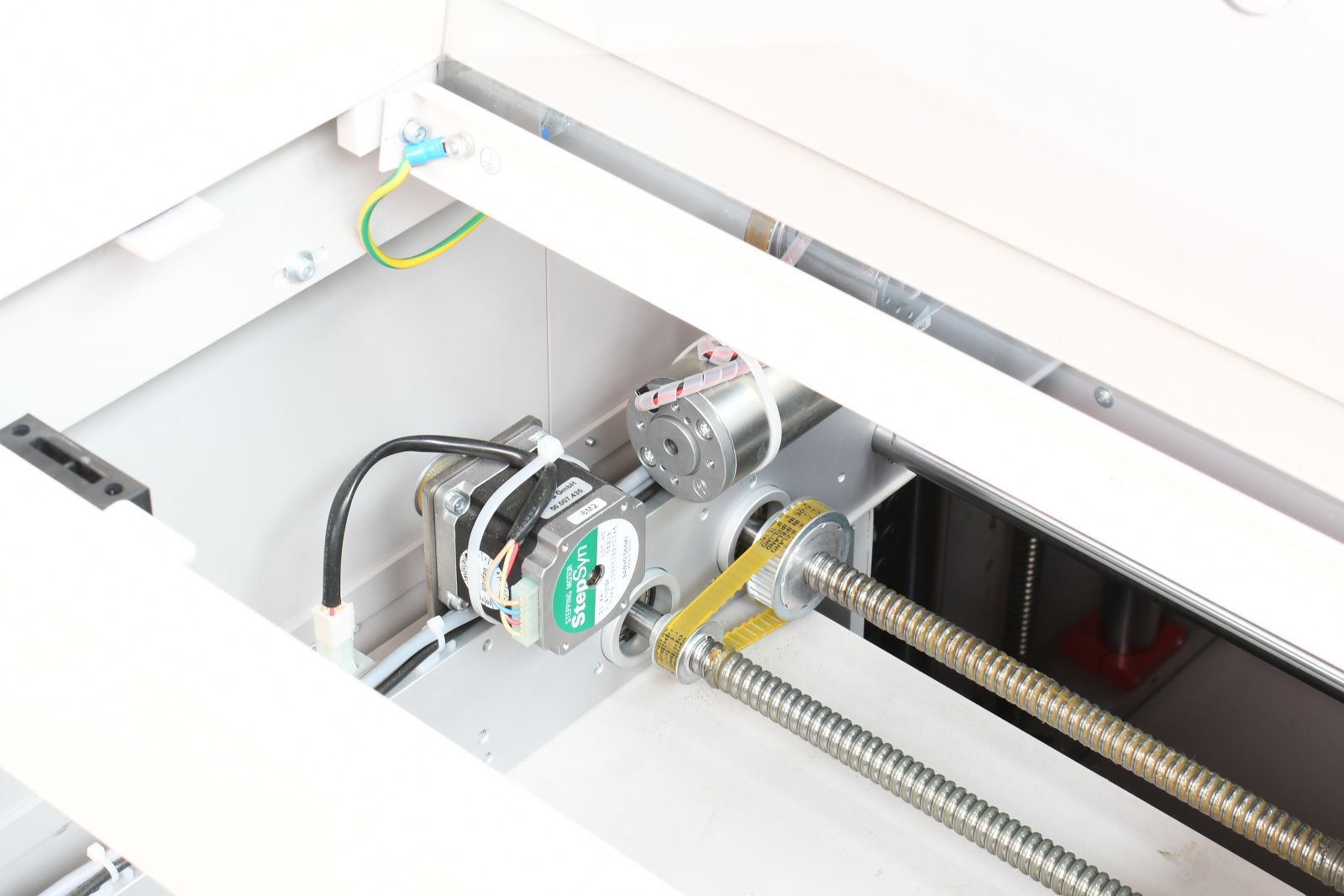

Fully automated transport width adjustment with sensors
Automatic transport width adjustment without sensors
Magazine adaption
Ultrasonic sensors
Cooling function
Hybrid equipment per segment
Inspection function
Good/Bad sorting
SMEMA interface
Machine Configuration:
Transport Height: 850 mm ± 50 mm
Max. Transport Width: 460 mm
Interface: SMEMA
Transfer Direction: From left to right
Operating Side: Front of the machine
Fixed Rail: Front of the machine
Magazine Size:
Magazine Length: 535 mm
Magazine Width: 530 mm
Magazine Height: 568 mm
Slot Spacing: 5 - 20 mm
Buffer Spacing: 1 - 50 Slots
Single Magazine Weight: Max. 30 kg
Panel Dimensions:
Panel Length: 70 to 460 mm
Panel Width: 50 to 460 mm
Panel Thickness: 0.5 to 4.5 mm
Component Clearance: +12 mm / -40 mm
Panel Weight: Max. 3 kg

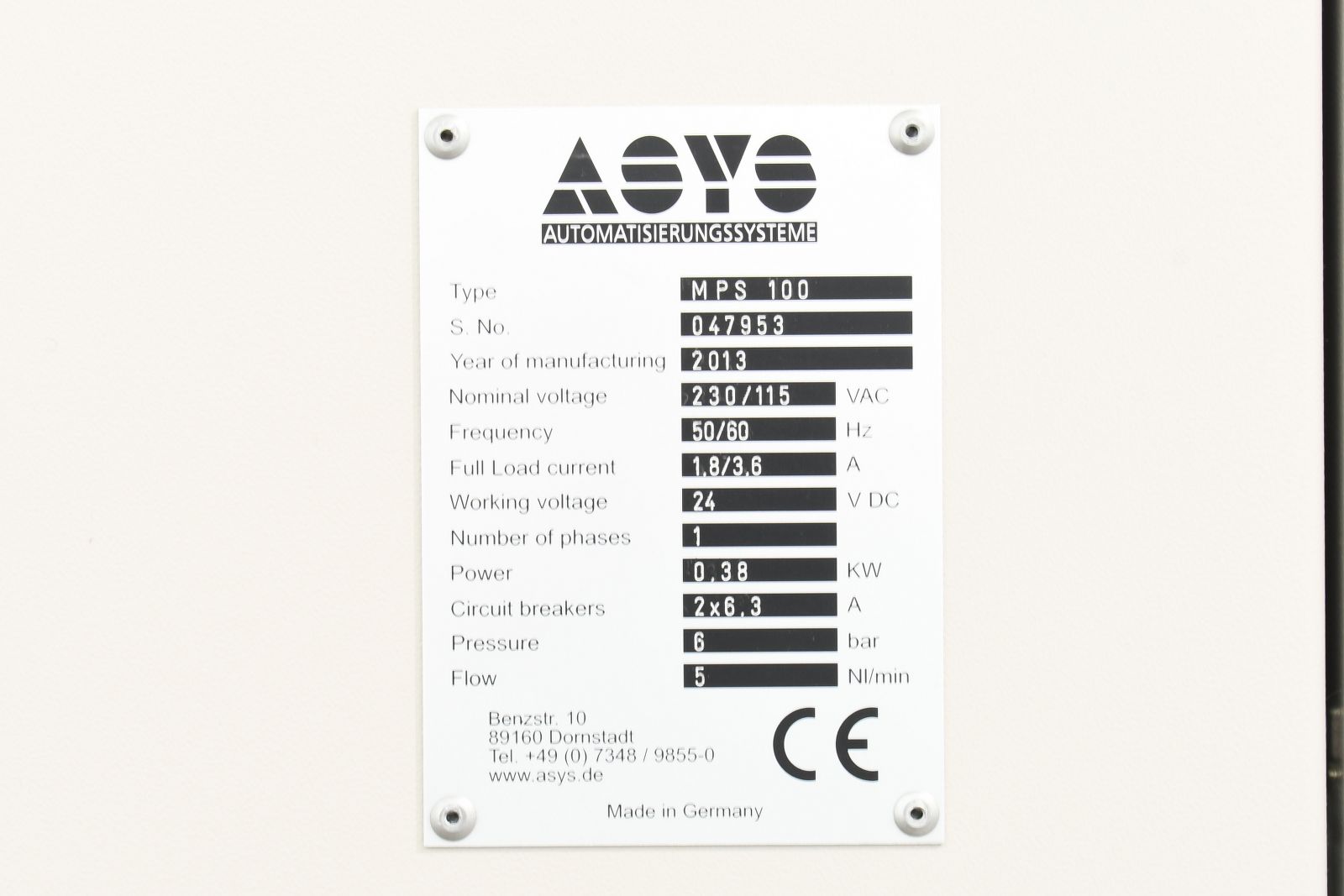

Electrical data:
Rated voltage: 115/230V AC
Frequency: 50/60Hz
Current: 1.8/3.6A
Rated power: 0.38kW

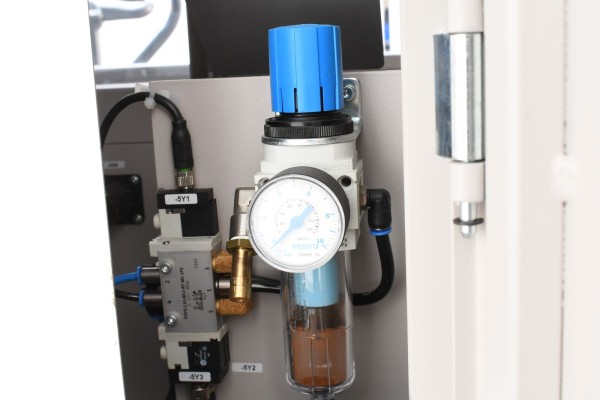

Compressed air: 6bar
Flow: 5Nl/min
Accessories:
Documentation, circuit diagram folder, logbook
