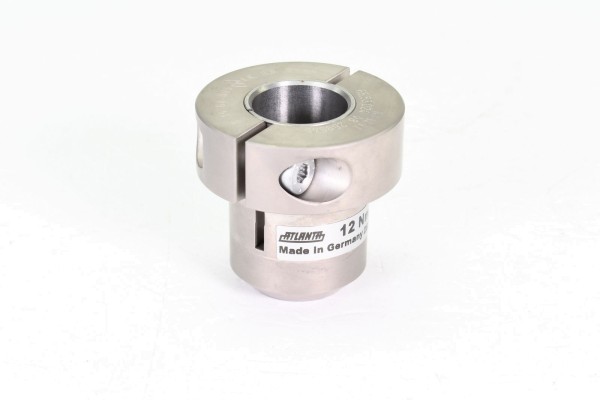

ATLANTA Antriebssysteme GmbH Special coupling for motor/gearbox, 65 53 024, 8 35 68 005
Model:
6553024
Type:
83568005
Condition:
Used
General:
Coupling for E Servo Gearboxes
Rigid model, nitrided, preassembled for motor shafts without key
Bore on gearbox side low-clearance tooth-hub profile corresponding to DIN 5480 for push-fitting
Dimension:
d1: 24
d2: 15x1,25x10
D1: 48
D2: 33
L1: 16,5
L2: 31,2
L3: 46
R1: 5
G: M6
Jred: 0,647x10-4kgm2
