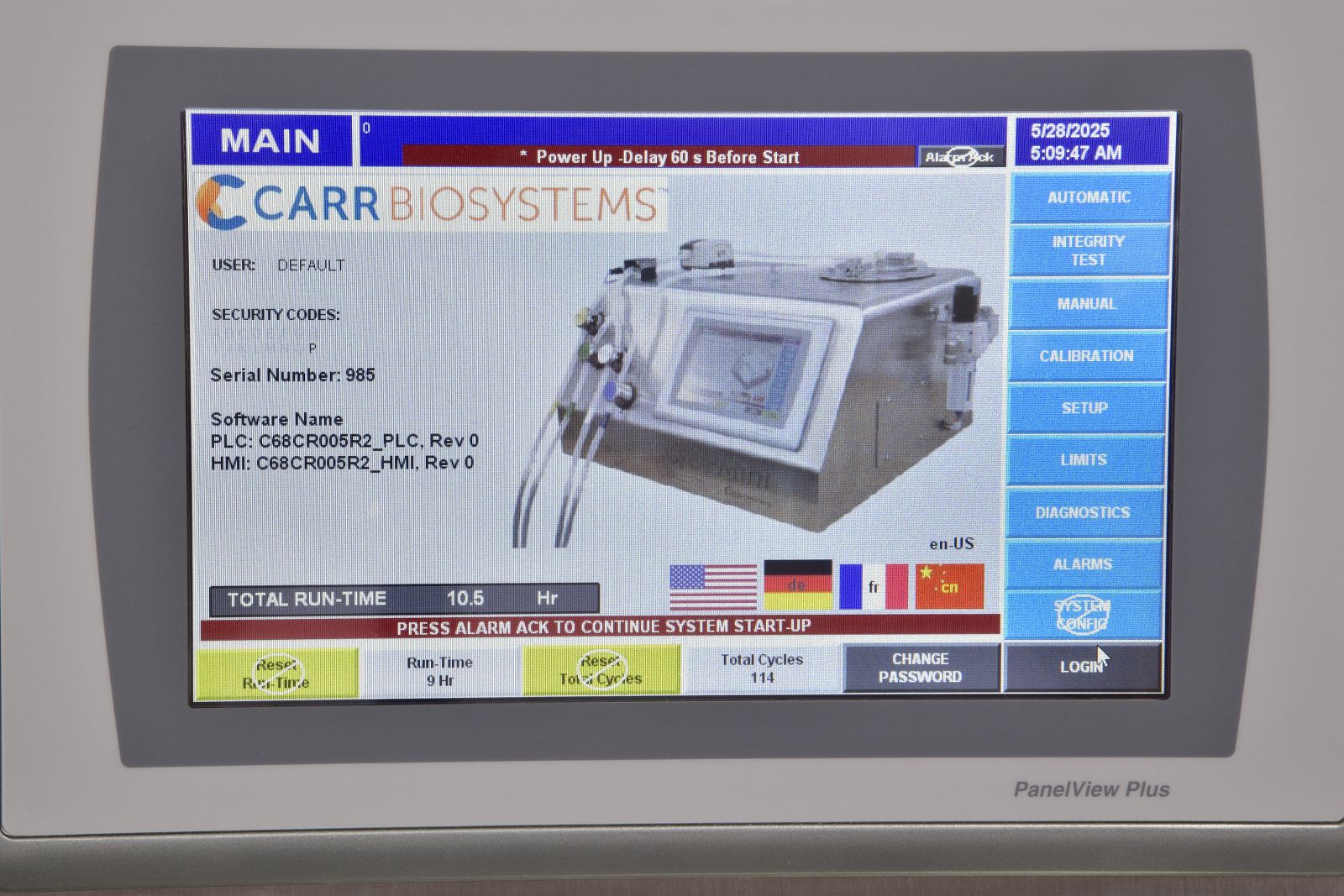

Software PLC: C68CR005R2_PLC, Rev.0

Software HMI: C68CR005R2_HMI, Rev.0

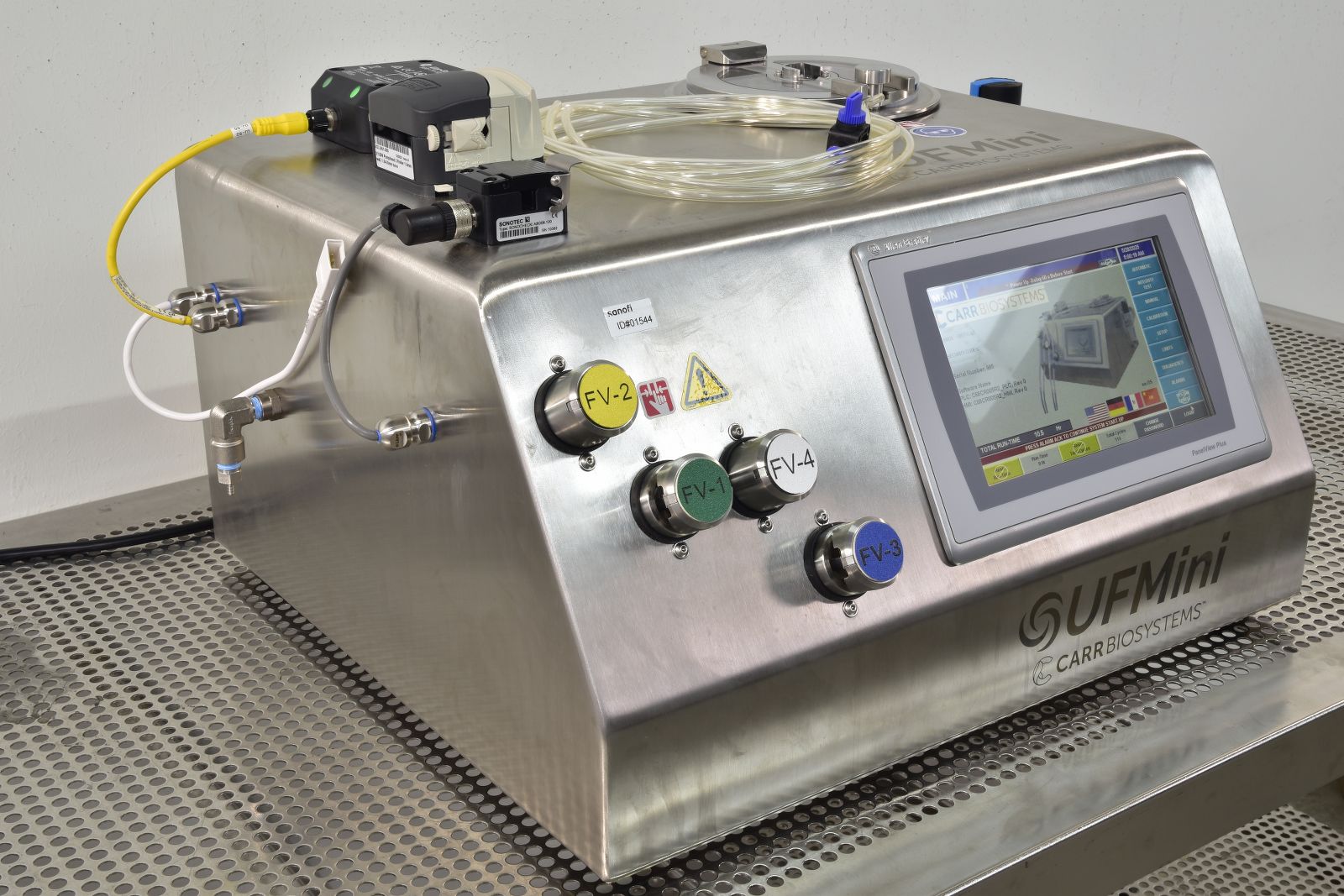

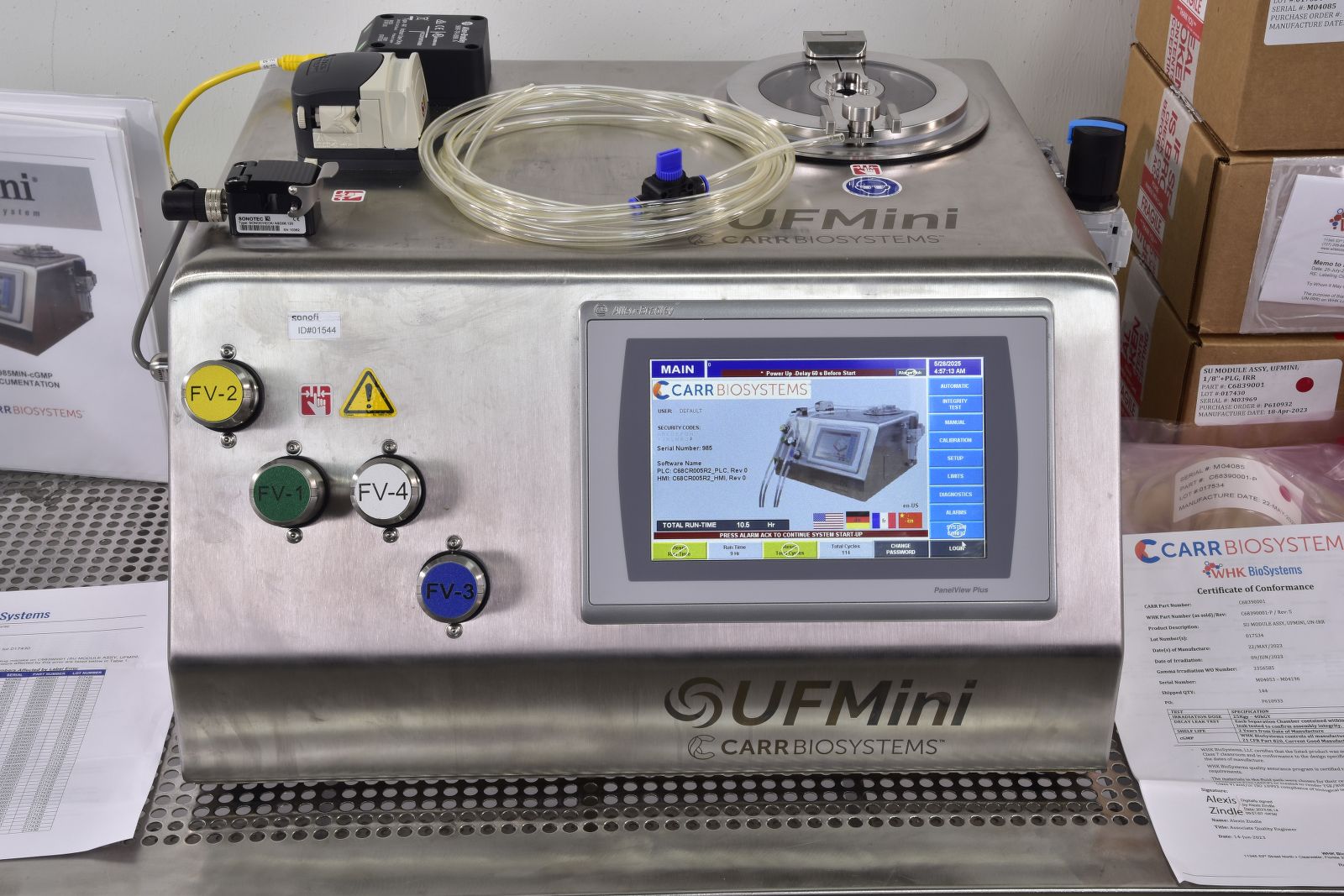

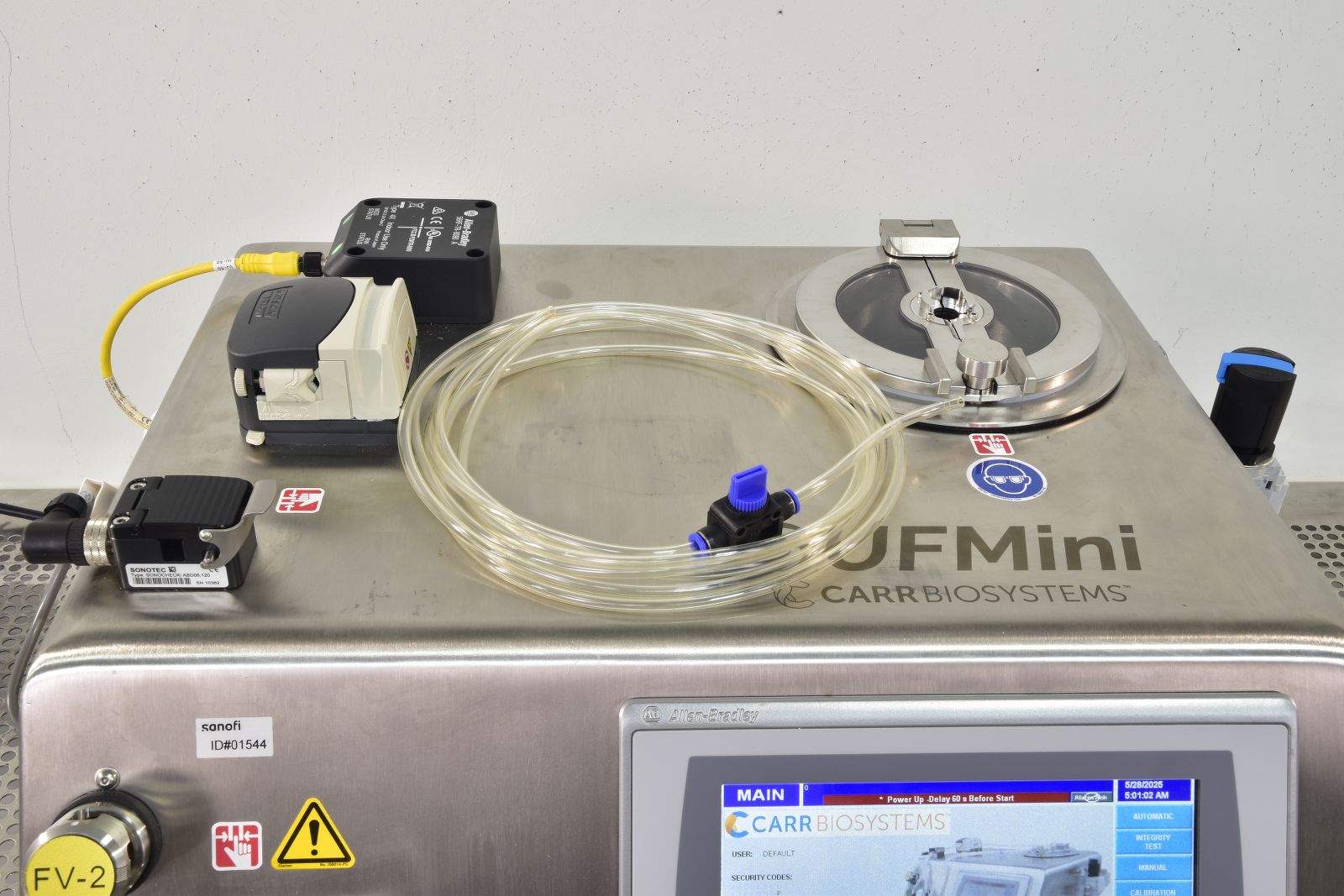

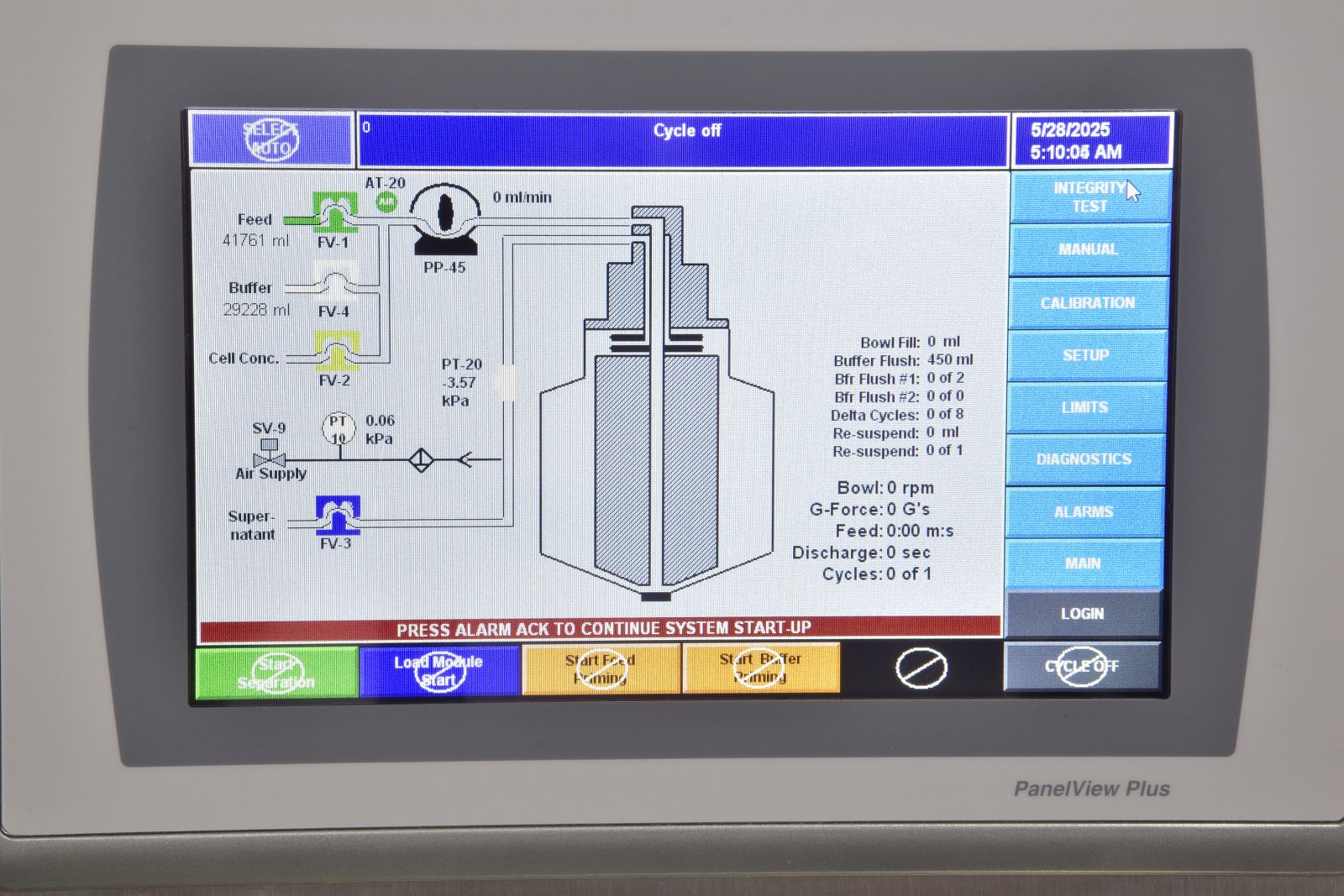

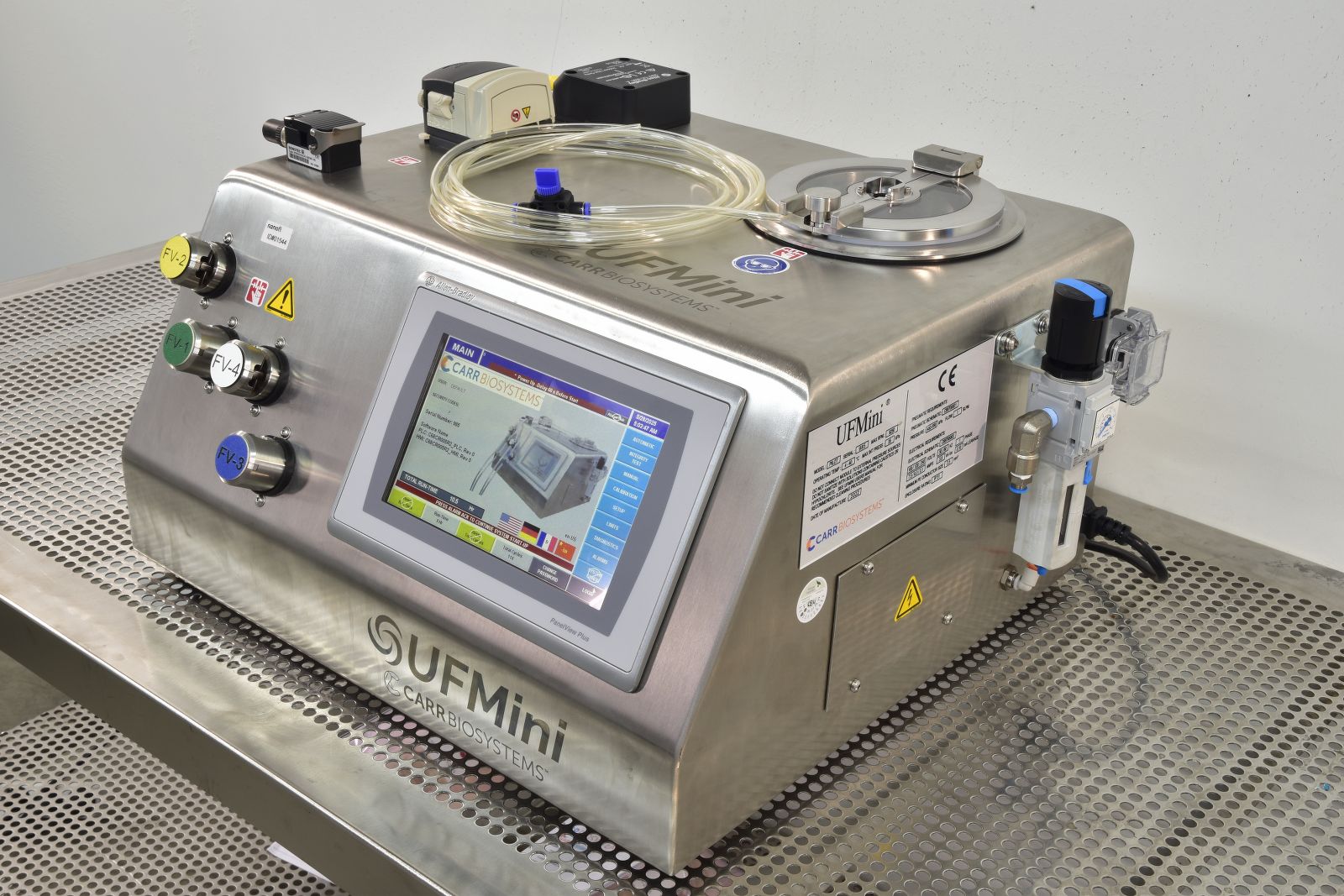

The UFMini is an automated batch centrifuge for low shear separation of mammalian, bacteria, and insect cell lines. This system produces high cell recovery rates using a single-use, tubular-bowl module mounted in the bowl. In addition, all process contact surfaces in the centrifuge system are disposable and 100% replaceable after each run. The UFMini operates in an intermittent, batch mode. During the filling phase of the separation cycle, the bowl is rotated to the preset preliminary fill speed(s) allowing liquid suspension to be fed into the UFMini at a controlled flow rate. When a full bowl condition is detected, the controller stops the feed pump and the centrifuge is automatically accelerated to a preset separation speed. Once the bowl has reached the separation speed, the feed is restarted at the preset process flow rate and the clarified supernatant valve opened. At the end of the preset feed cycle, the centrifuge bowl is stopped, and the feed pump reversed to recover the cell concentrate. This cycle is repeated as many times as required to process the bioreactor volume.

Mains cable

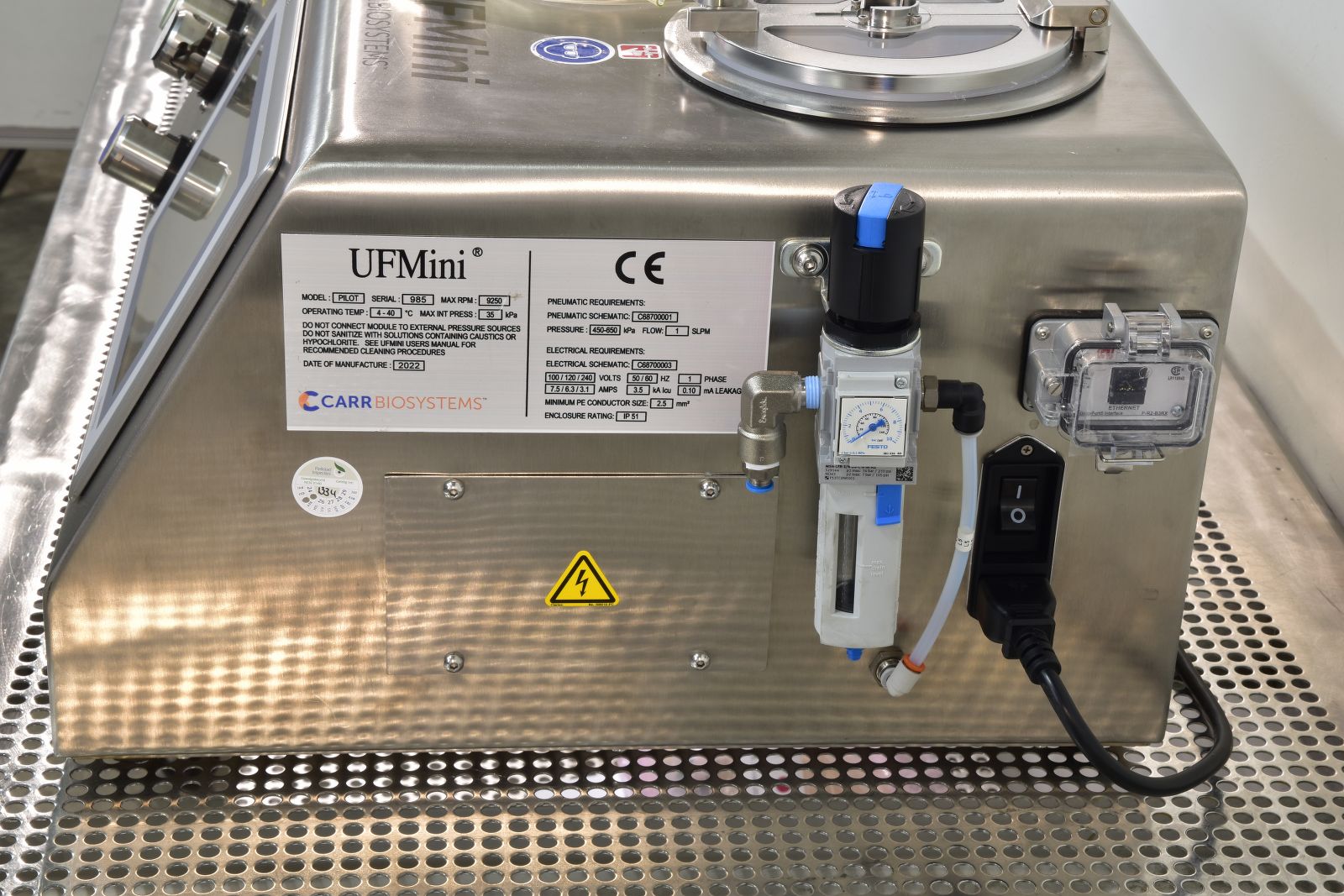

Compressed air hose with valve

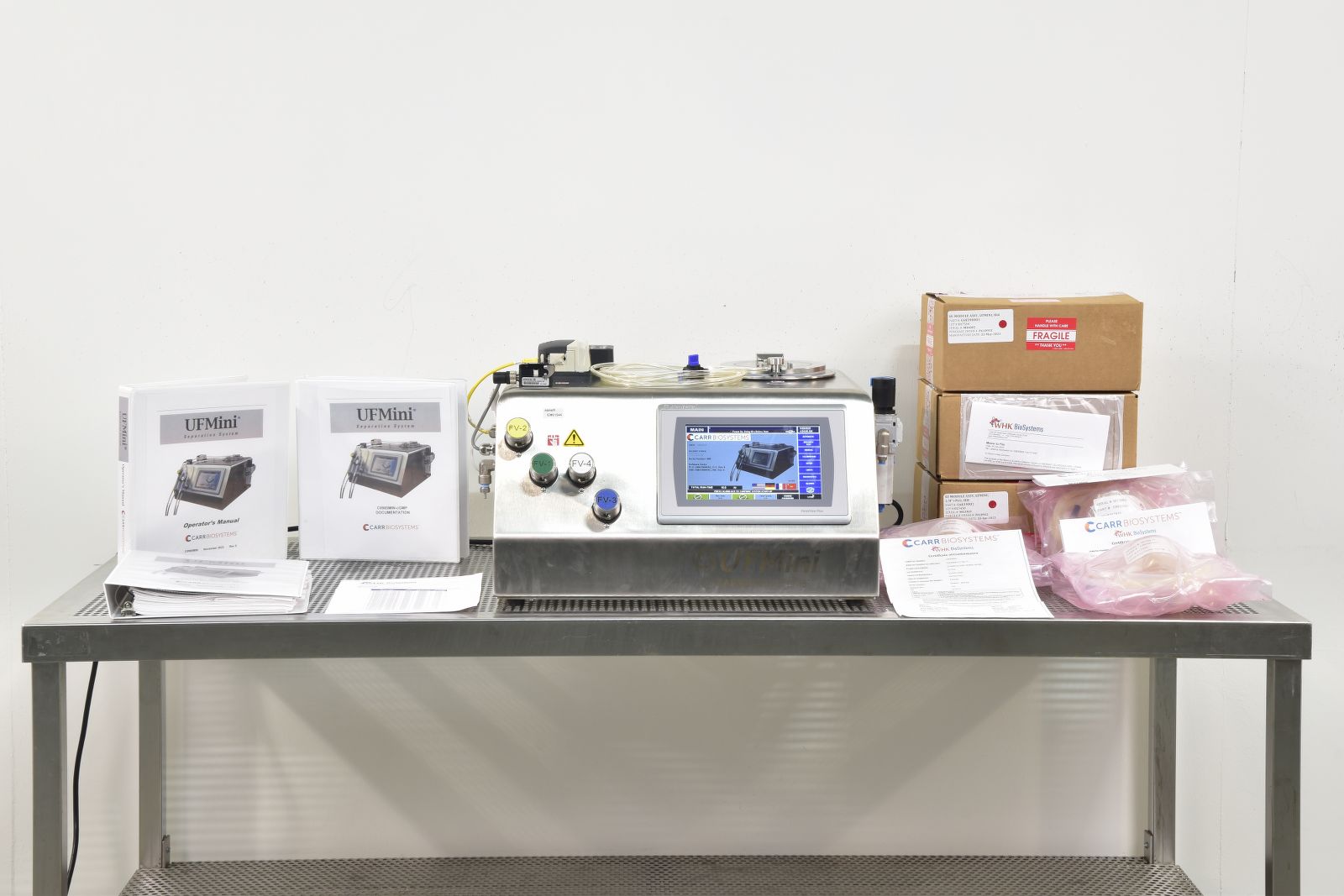

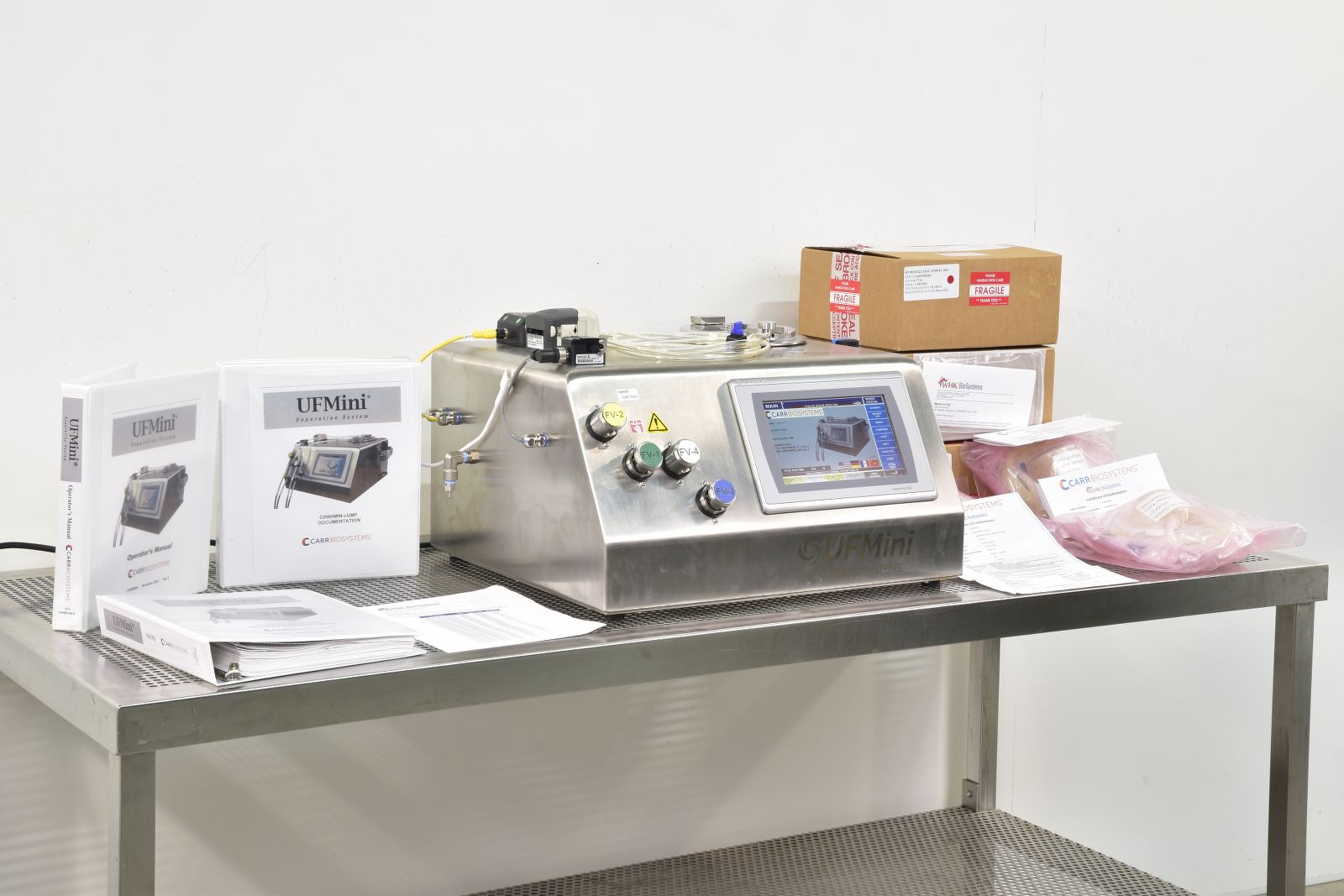

1x disposable disconnect module C68390001-P

2x disposable disconnect module C68390001
