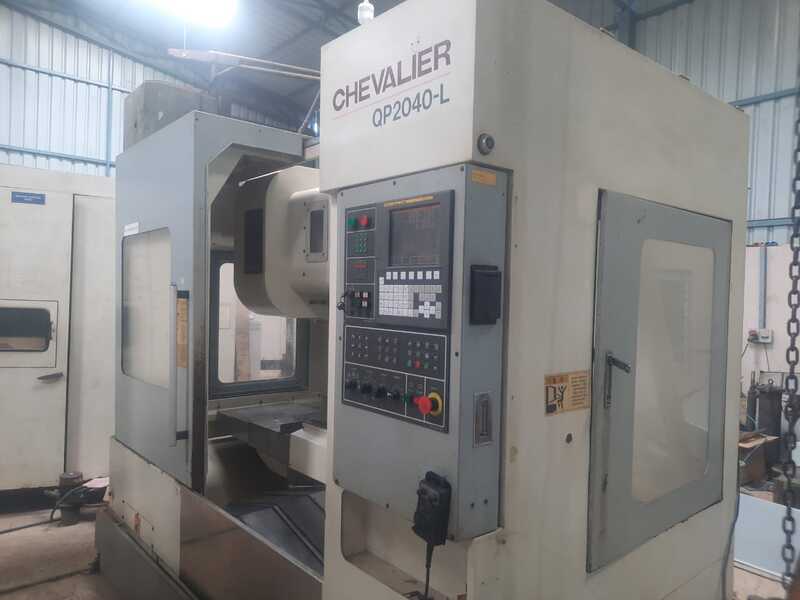

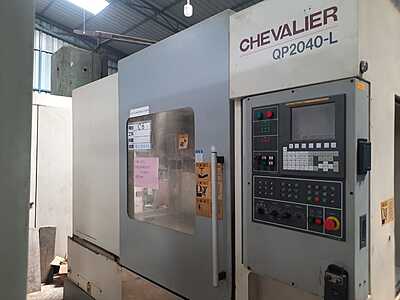

Chevalier QP2040L VMC
₹2,000,000.00
Chevalier QP2040L VMC

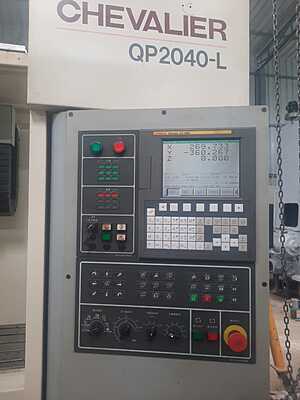

Fanuc 0i MC Controller
Choose Quantity
Product Details
Chevalier QP2040L VMC
Fanuc 0i MC Controller
TableTable size 1,200 x 510 mm
Max. table load600 kg
Travel X / Y /Z travel 1,020 / 530 / 510 mm
Spindle
Spindle nose to table surface 130~640 mm
Spindle nose to table surface 130~640 mm
Spindle center to column585 mm
Spindle taper#40
Spindle speedBelt drive: 100~8,000 rpm
Spindle diameter70 mm
Feed rates Rapid traverse (X / Y / Z) 36/36/24 m/min
Cutting feed (X / Y / Z)1~10 m/min
Automatic tool changer Tool storage capacity 32 arm type–
Tool shank BT40
Max. tool length300 mm
Max. tool weight7 kg
Machine dimensions Floor space (W x D x H)2,800 x 3,020 x 2,963 mm
Net weight 6,200 kg
