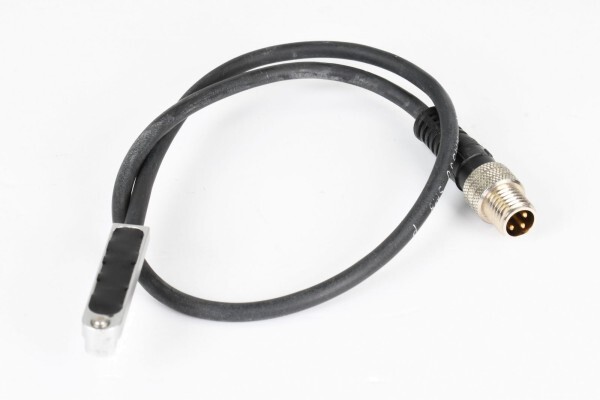

Electronic magnetic switch, 0301471, MMS 30 S M8 PNP
Model:
0301471
Type:
MMS30SM8PNP
Condition:
Used
Technical Data:
24V DC
General:
Technical details
Measuring principle : magnetic
Switching function : NO contact
Switching mode : PNP
Number of switching points : 1
Min. ambient temperature [�C] : -25
Max. Ambient temperature [�C] : 70
LED display on sensor : no
Voltage type : DC
Nominal voltage : 24
Min. operating voltage : 10
Max. Operating voltage : 30
Voltage drop [V] : 45413
Max. Switching current : 0.2
Cable plug/cable end : M8
Cable length L [cm] : 30
Cable diameter D [mm] : 3.5
Min. bending radius (dynamic) [mm] : 35
Min. bending radius (static) [mm] : 17.05
Dead weight : 0.04
Protection class IP (sensor, plugged in) : 67
