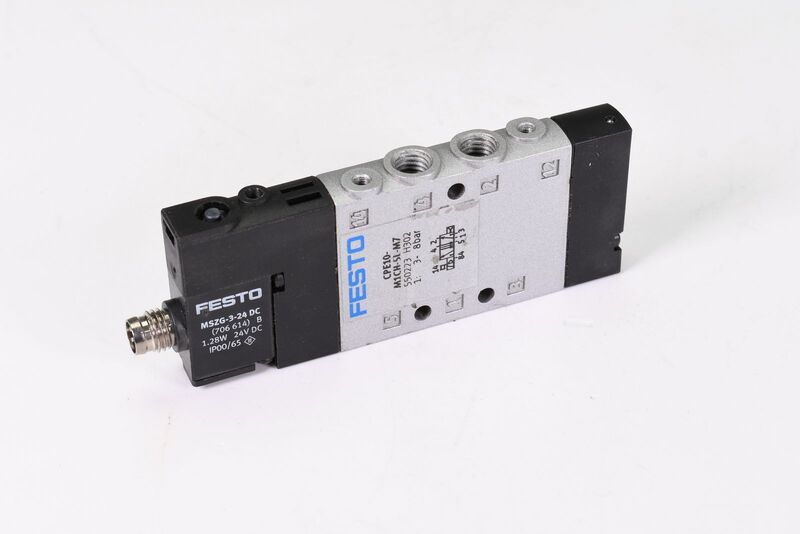

Festo Vertrieb GmbH & Co. KG Solenoid valve, 550223, CPE10 M1CH 5L M7
Model:
550223
Type:
CPE10M1CH5LM7
UPC:
4052568192068
Condition:
Used
Technical Data:
24V DC
General:
Valve function: 5/2 monostable
Operating mode: electric
Width: 10 mm
Normal nominal flow rate: 350 l/min
Pneumatic working connection: M7
Operating pressure: 3 bar ... 8 bar
Nominal diameter: 4 mm
Switching time off: 20 ms
Switching time on: 16 ms
Corrosion resistance class KBK2
LABS conformity: VDMA24364-B1/B2-L
Temperature: -5-50 �C
Electrical connection: 4-pin M8x1
