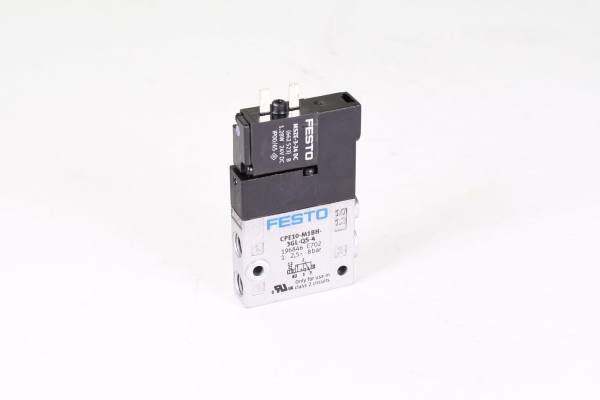

FESTO 196846, CPE10-M1BH-3GL-QS-4, Solenoid valve
Non-returnable
₹14.89
Tags:
LW40764
Choose Quantity
Product Details
Festo Vertrieb GmbH & Co. KG Solenoid valve, 196846, CPE10 M1BH 3GL QS 4
Model:
196846
Type:
CPE10M1BH3GLQS4
EAN/GTIN:
4052568159566
Condition:
Used
Technical Data:
24VDC
1.28W
General:
Valve function: 3/2 closed monostable
Actuation type: electric
Width: 10mm
Standard nominal flow rate: 190l/min
Operating pressure: 2.5-8bar
Protection class: IP65
Nominal width: 4mm
Switching time: off 14ms, on 14ms
Duty cycle: 100%
Operating medium: compressed air (ISO 8573-1:2010)
Corrosion resistance class: KBK 2
Ambient temperature: -5-50�C
Electrical connection: 2-pole
Control exhaust air/control air connection: M3
2 Pneumatic connections: QS-4
Pneumatic connection 3: M7
