DMG DMU 60 Monoblock
₹4,800,000.00
DMG DMU 60 Monoblock - 5-Axis Machining Center
Brand: DMG
Model: DMU 60 Monoblock
Year of Manufacture: 2005
CNC Control: Heidenhain TNC 530
Machine Type: 5-Axis Vertical Machining Center (VMC)
Choose Quantity
Product Details
Key Specifications:
- Clamping Table Surface: 600 x 1000 mm
- X-Axis Travel: 630 mm
- Y-Axis Travel: 560 mm
- Z-Axis Travel: 560 mm
- Spindle Speed: 0 - 12,000 RPM
- Number of Axes: 5

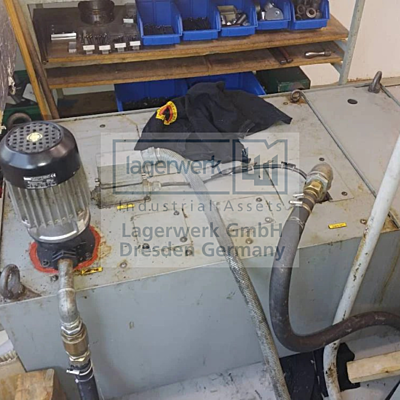

- IKZ (Integrated Coolant Supply): True

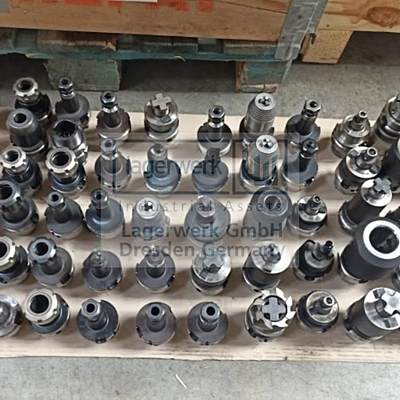

- Spindle Taper: HSK 63

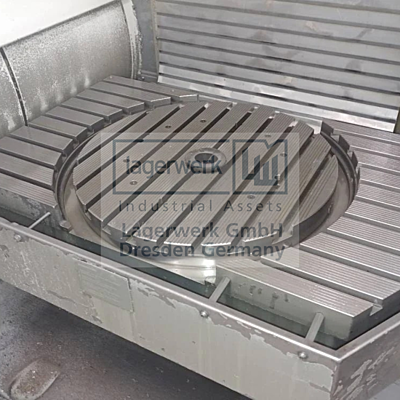

- Table Diameter: 600 mm
- Tool Changer Capacity: 24 Positions
- Main Motor Power: 15/10 kW
- Maximum Workpiece Weight: 500 kg
- Machine Weight: Approx. 6,000 kg
- Dimensions (L x W x H): 3000 mm x 2500 mm x 2300 mm
Additional Features:
- High precision 5-axis machining for complex parts.
- Suitable for large workpieces with a high weight capacity of up to 500 kg.
- Equipped with a powerful spindle, capable of up to 12,000 RPM, ensuring high-speed cutting and fine finishes.
- Heidenhain TNC 530 control offers advanced programming capabilities and smooth operation.
- The HSK 63 spindle taper ensures robust toolholding for higher precision.
- Compact design with a table diameter of 600 mm, making it ideal for manufacturing high-quality components.
