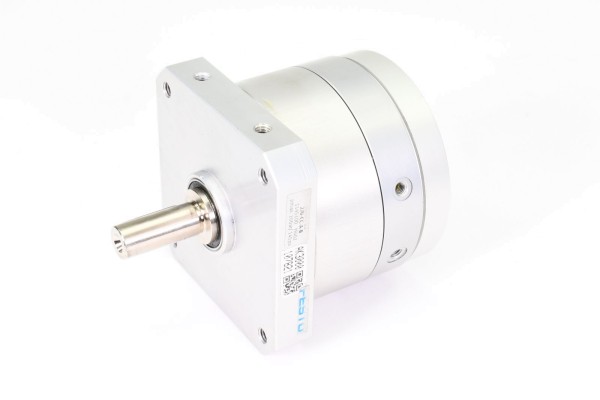

FESTO 1145100, DSM-T-25-270-CC-A-B, Semi-rotary drive
₹24,300.00
Tags:
LW37354
Choose Quantity
Product Details
Festo Vertrieb GmbH & Co. KG Semi-rotary drive, 1145100, DSM T 25 270 CC A B
Model:
1145100
Type:
DSMT25270CCAB
EAN/GTIN:
4052568227500
Condition:
Used
General:
Shaft diameter: 12mm
Shaft length: 30mm
Feather key: 4mm
Size: 25
Theoretical torque at 0.6 MPa (6 bar, 87 psi): 10 Nm
Swivelling angle: 0 deg - 246 deg
Position detection: for proximity switch
Shock absorber on both sides
Operating pressure: 0.2 MPa ... 1 MPa, 2 bar ... 10 bar
Operating medium: compressed air
Ambient temperature: -10 �C ... 60 �C
Pneumatic connection: M5
Model:
1145100
Type:
DSMT25270CCAB
EAN/GTIN:
4052568227500
Condition:
Used
General:
Shaft diameter: 12mm
Shaft length: 30mm
Feather key: 4mm
Size: 25
Theoretical torque at 0.6 MPa (6 bar, 87 psi): 10 Nm
Swivelling angle: 0 deg - 246 deg
Position detection: for proximity switch
Shock absorber on both sides
Operating pressure: 0.2 MPa ... 1 MPa, 2 bar ... 10 bar
Operating medium: compressed air
Ambient temperature: -10 �C ... 60 �C
Pneumatic connection: M5
