CLECO MPRO400GC-P230, Global screwdriver controller
Non-returnable
₹162,062.40
Tags:
LW39471
Choose Quantity
Product Details

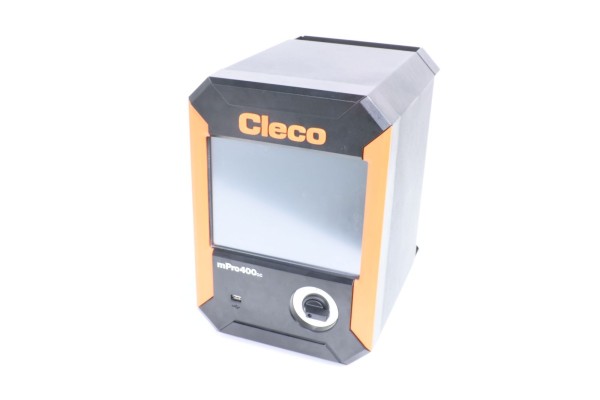

APEX Tool Group GmbH Global screwdriver controller, MPRO400GC P230
Model:
MPRO400GCP230
Condition:
Used
Technical Data:
115/230V AC
50/60Hz
2A
250VA
General:
Controller: primary
Primary - Controls up to sixteen (16) tools. This unit includes a servo. One (1) standard corded handheld or fixtured tool could directly connect. For further corded tools / fixtured spindles are Secondary controllers required.
Electrical data:
Voltage: 115/230V AC
Frequency: 50/60 Hz
Rated current: 2 A
Power: Typ. 250 VA
Tool compatibility:
18�48 AirLB
Cordless EC tool
DGD-Intelligent-Spindles (BTS Series)
Display:
10.4" TFT Liquid Crystal Display
Touchscreen 800 x 600 resolution
Connector Locations:
System Bus Connector
Tool Connector
Power Connection
2 x Mounting Bracket Screw
I/O Connectors
2 x Anybus Fieldbus
2 x Serial Connector
USB ports
2 x Ethernet Connector
IP Rating: IP42
Dimensions (LxHxW): 263 x 378 x 46.4 mm
Accessories:
IEC plug
Model:
MPRO400GCP230
Condition:
Used
Technical Data:
115/230V AC
50/60Hz
2A
250VA
General:
Controller: primary
Primary - Controls up to sixteen (16) tools. This unit includes a servo. One (1) standard corded handheld or fixtured tool could directly connect. For further corded tools / fixtured spindles are Secondary controllers required.
Electrical data:
Voltage: 115/230V AC
Frequency: 50/60 Hz
Rated current: 2 A
Power: Typ. 250 VA
Tool compatibility:
18�48 AirLB
Cordless EC tool
DGD-Intelligent-Spindles (BTS Series)
Display:
10.4" TFT Liquid Crystal Display
Touchscreen 800 x 600 resolution
Connector Locations:
System Bus Connector
Tool Connector
Power Connection
2 x Mounting Bracket Screw
I/O Connectors
2 x Anybus Fieldbus
2 x Serial Connector
USB ports
2 x Ethernet Connector
IP Rating: IP42
Dimensions (LxHxW): 263 x 378 x 46.4 mm
Accessories:
IEC plug
