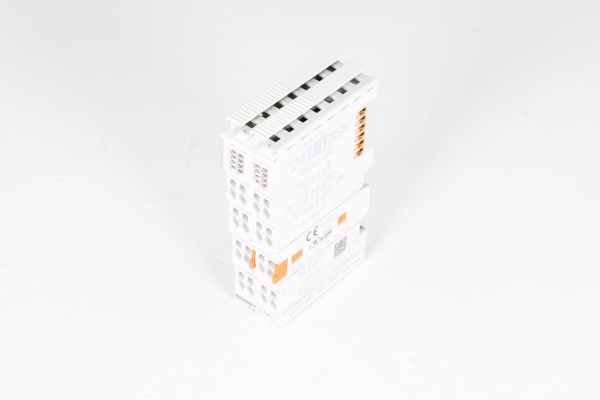

BECKHOFF EL7047, Stepper motor terminal with incremental encoder, Rev0021
Non-returnable
₹10,805.00
Tags:
LW36189
Choose Quantity
Product Details
Beckhoff Automation GmbH & Co. KG Stepper motor terminal with incremental encoder, Rev0021, EL7047
Model:
EL7047
Condition:
Used
Technical Data:
50V DC
5A
General:
EtherCAT Terminal, 1-channel motion interface, stepper motor, 48 V DC, 5 A, vector control, with incremental encoder
Connection method:
direct motor connection + feedback
Number of inputs:
2 x end position, 1 x encoder
Load type:
2-phase stepper motor (uni-/bipolar)
Number of outputs:
1 x stepper motor, 1 x motor brake
Supply voltage electronics:
24 V DC (via power contacts)
Supply voltage power:
8�48 V DC (external)
Output current:
max. 5.0 A
