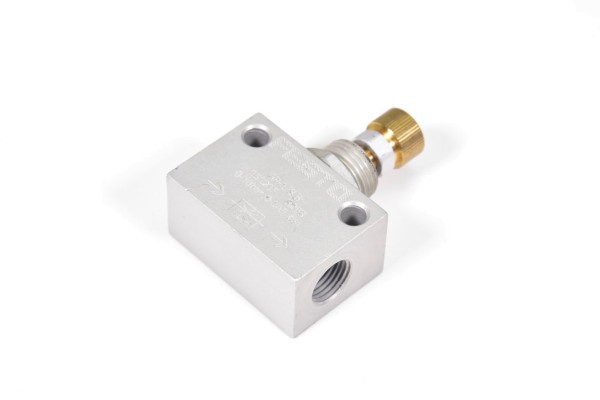

FESTO 151215, GR-1/8-B, One-way flow control valve
Non-returnable
₹262.00
Tags:
LW29883
Choose Quantity
Product Details
Festo Vertrieb GmbH & Co. KG One-way flow control valve, 151215, GR 1 8 B
Model:
151215
Data:
0.5...10bar
One-way flow control valve 151215
Type: GR-1/8-B
Pneumatic connection: G1/8
Adjustment component: knurled screw
Standard nominal flow rate in flow control direction: 210 l/min
Operating pressure: 0.5...10 bar
Ambient temperature: -20...60�C
Nominal size: 3mm Material seals: NBR (Acrylonitrile Butadiene Rubber) Sleeve material: POM (polyoxymethylene) Material regulating screw: high-alloy steel Material nut: wrought aluminum alloy
Model:
151215
Data:
0.5...10bar
One-way flow control valve 151215
Type: GR-1/8-B
Pneumatic connection: G1/8
Adjustment component: knurled screw
Standard nominal flow rate in flow control direction: 210 l/min
Operating pressure: 0.5...10 bar
Ambient temperature: -20...60�C
Nominal size: 3mm Material seals: NBR (Acrylonitrile Butadiene Rubber) Sleeve material: POM (polyoxymethylene) Material regulating screw: high-alloy steel Material nut: wrought aluminum alloy
