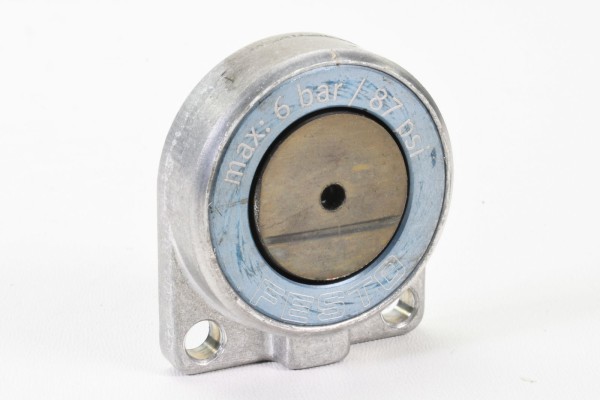

FESTO 150683, EV-20-4, Clamping module
Non-returnable
₹1,155.00
Tags:
LW34031
Choose Quantity
Product Details
Festo Vertrieb GmbH & Co. KG Clamping module, 150683, EV 20 4
Model:
150683
Type:
EV204
Contidtion:
Used
General:
Stroke 4mm
Clamping surface �20
Mounting position optional
Mode of operation Single-acting
Symbol 00991208
Operating pressure ?0.6MPa
Operating pressure ?6bar
Operating pressure ?87psi
Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
LABS (PWIS) conformity VDMA24364-B1/B2-L
Type of mounting With through-hole
Pneumatic connection M3
Material housing Die-cast aluminium
Material membrane TPE-U(PU)
