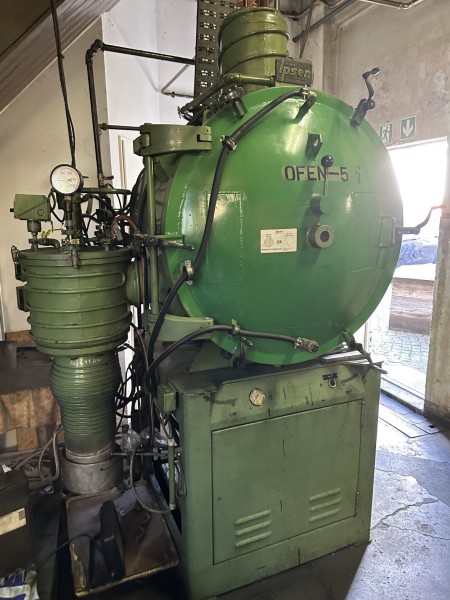

IPSEN VFC-124, Electric vacuum furnace, YoM1979
₹1,400,000.00
Ipsen VFC-124
Article number:
DV10102
Manufacturer:
Ipsen
Manufacturer number:
VFC-124
Serial number:
29238
YoM:
1979
Condition:
Used
Location
Germany
Availability:
as of 03/2025
Choose Quantity
Product Details
psen Industries International GmbH Electric vacuum furnace, VFC 124
Model: VFC124
Year of manufacture: 1979
Technical Data:
Heated by: electric
Controlled atmosphere: N2
Gas absolute pressure min.: 13x10-5mbar
Gas absolute pressure max.: 1500mbar
Operating temperature min.: 500°C
Operating temperature max.: 1320°C
Compressed air consumption Vn: 0.1m3/batch
Cooling gas consumption Vn: 0.6m3/batch
Quenching type: Gas cooling
Type of thermal insulation: Insulating wool
Max. load weight: 60kg
Type of loading and unloading: by hand
Chamber dimensions: 300x380x200mm (WxLxH)
Total electrical data:
Rated voltage: 380V AC
Rated current: 56A
Frequency: 50Hz
Power input: 37kVA
Electrical data heating:
Rated voltage: 30V AC
Rated current: 416/588A
Frequency: 50Hz
Power: 25kW
