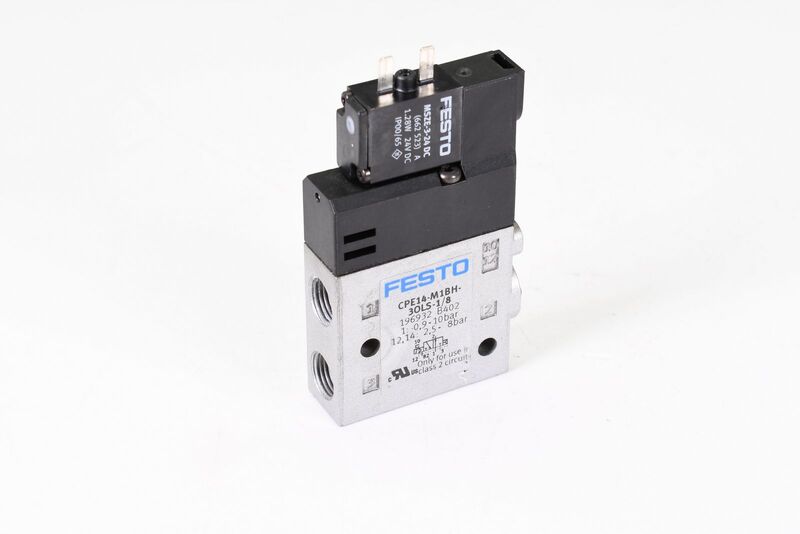

FESTO 196932, CPE14-M1BH-3OLS-1/8, Solenoid valve
Non-returnable
₹17.56
Tags:
LW40595
Choose Quantity
Product Details
Festo Vertrieb GmbH & Co. KG Solenoid valve, 196932, CPE14 M1BH 3OLS 1 8
Model:
196932
Type:
CPE14M1BH3OLS18
EAN/GTIN:
4052568160104
Condition:
Used
General:
Valve function 3/2 open, single solenoid
Type of actuation Electric
Construction width 14mm
Standard nominal flow rate (standardised to DIN 1343) 900 l/min
pneumatic working port G1/8
Operating voltage 24V DC
Operating pressure -0.09-1MPa, -0.9-10bar
Design Piston gate valve
Type of reset Pneumatic spring
Approval c UL us - Recognized (OL)
Certificate issuing authority DNV-TAA000032X UL MH19482
Degree of protection IP65 With plug socket To IEC 60529
Nominal size 6mm
Sealing principle Soft
Mounting position optional
Manual override Detenting via accessory Non-detenting
Type of piloting Pilot actuated
Pilot air supply External
Flow direction Non-reversible
Valve position code Inscription label holder
lap Overlap
Pilot pressure 0.25-0.8MPa, 2.5-8bar
Switching time off 27ms
Switching time on 16ms
Duty cycle 100% in conjunction with holding current reduction
Max. positive test pulse with 0 signal 1200�s
Max. negative test pulse with 1 signal 900�s
Characteristic coil data 24V DC: 1.28W
Permissible voltage fluctuations -15%/+10%
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
Vibration resistance Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Media temperature -5-50�C
Pilot medium Compressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature -5-50�C
