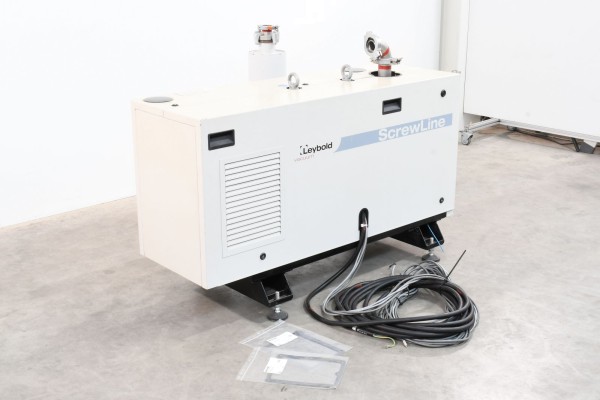

Oerlikon Leybold Vacuum GmbH Dry compressing screw vacuum pump, ScrewLine, 115 003 ATEX 3i, SP250
Model: 115003ATEX3i
Type: SP250
Condition: Used
Technical data: ScrewLine
200-460V AC
50/60Hz
14.5-39A
7.3/9.2kW
270-330m3/h
General:
with electromagnetic gas ballast and sealing gas for sealing
ATEX 3i
Pumping capacity:270 m?/h at 50 Hz,
330 m?/h at 60 Hz
Ultimate pressure:? 1 x 10^-2 mbar without gas ballast,
? 2 x 10^-1 mbar with gas ballast at 50 Hz,
? 2 x 10^-2 mbar with gas ballast at 60 Hz
Inlet/outlet connections: DN 63 ISO-K
Operating fluid: LEYBONOL LVO 210, capacity 7 liters
Noise level:67 dB(A) at 50 Hz,
72 dB(A) at 60 Hz
Motor:7.5 kW at 50 Hz,
11.5 kW at 60 Hz
Motor protection class: IP 55
Ambient temperature range: +12 to +40 ?C
Accessories:Outlet silencer with condensate drain 119 002
Volume: 15L
max. temperature: 110?C
max. pressure: 500mbar
Monitoring system SPGuard 119 041
Power supply: 24V DC, 200mA
SW: 01.04
2x seal 71237044
Note on item Condition: Rust spots on the screw connections and rust film on the flanges, please refer to the pictures for more detailed information.
