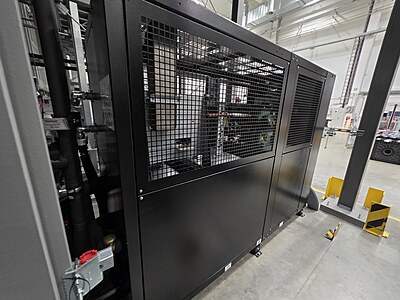

GWK weco 48.1 wzttx + twd 18, industrial cooling and heating unit
₹2,500,000.00
Article number:
DV10139
Manufacturer:
Gwk
Manufacturer number:
weco 48.1 wzttx + twd 18
Type:
weco e b 20 w m20 pt 5x x c x
Serial number:
S10012220
YoM:
2018
Condition:
Used
Location

Germany
Availability:
immediately
Choose Quantity
Product Details
Gesellschaft Wärme-Kältetechnik mbH Compact refrigeration machine, industrial cooling and heating unit, weco 48.1 wzttx + twd 18, weco e b 20 w m20 pt 5x x c x
Model: weco481wzttx + twd18
Type: wecoeb20wm20pt5xxcx
Year of manufacture: 2018
General:
Powerful industrial cooling and temperature control unit for regulating process media.

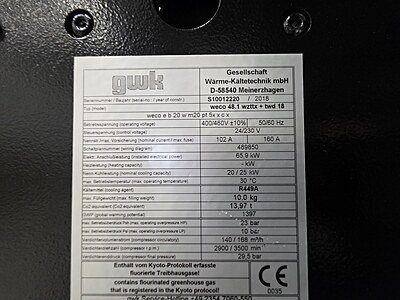

Technical data:
Operating voltage: 400/460V AC ±10%
Nominal current: 102A
Max. fuse: 160A
Frequency: 50/60Hz
Control voltage: 24/230V
Installed electrical power: 65.9kW
Wiring diagram: 489850
Nominal cooling capacity: 20/25kW
Max. operating temperature: 30°C
Cooling agent: R449A
Max. filling weight: 10kg
CO2 equivalent: 13.97t
Global warming potential: 1397
Max. operating overpressure HP: 23bar
Max. operating overpressure LP: 10bar
Compressor circulatory: 140/168m³/h
Compressor speed: 2900/3500rpm
Compressor final pressure: 29.5bar
Important note:
Contains fluorinated greenhouse gas that is registered in the Kyoto Protocol!
Model: weco481wzttx + twd18
Type: wecoeb20wm20pt5xxcx
Year of manufacture: 2018
General:
Powerful industrial cooling and temperature control unit for regulating process media.
Technical data:
Operating voltage: 400/460V AC ±10%
Nominal current: 102A
Max. fuse: 160A
Frequency: 50/60Hz
Control voltage: 24/230V
Installed electrical power: 65.9kW
Wiring diagram: 489850
Nominal cooling capacity: 20/25kW
Max. operating temperature: 30°C
Cooling agent: R449A
Max. filling weight: 10kg
CO2 equivalent: 13.97t
Global warming potential: 1397
Max. operating overpressure HP: 23bar
Max. operating overpressure LP: 10bar
Compressor circulatory: 140/168m³/h
Compressor speed: 2900/3500rpm
Compressor final pressure: 29.5bar
Important note:
Contains fluorinated greenhouse gas that is registered in the Kyoto Protocol!
