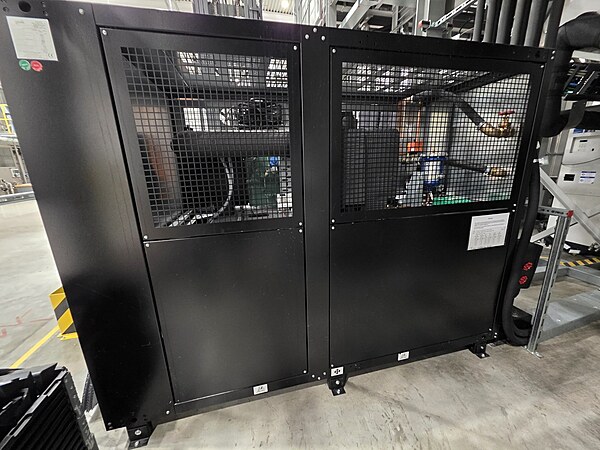

GWK weco 48.1 wzttx + twd 3, industrial cooling and heating unit
₹2,500,000.00
Article number:
DV10138
Manufacturer:
Gwk
Manufacturer number:
weco 48.1 wzttx + twd 3
Type:
weco e z 3x10 w m25 pt 5 x x c x
Serial number:
S10012224
YoM:
2018
Condition:
Used
Location
Germany
Availability:
immediately
Choose Quantity
Product Details
Gesellschaft Wärme-Kältetechnik mbH Compact refrigeration machine, industrial cooling and heating unit, weco 48.1 wzttx + twd 3, weco e z 3x10 w m25 pt 5 x x c x
Model: weco481wzttx + twd3
Type: wecoez3x10wm25pt5xxcx
Year of manufacture: 2018
General:
Compact industrial cooling and temperature control unit for regulating process media. Designed for high-temperature process cooling and temperature control applications.

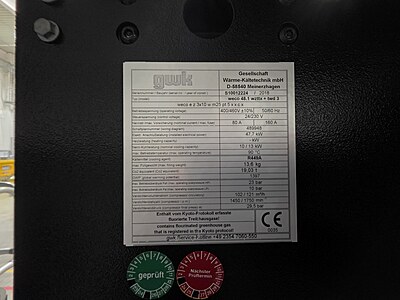

Technical data:
Operating voltage: 400/460V AC ±10%
Nominal current: 80A
Max. fuse: 160A
Frequency: 50/60Hz
Control voltage: 24/230V
Installed electrical power: 47.7kW
Wiring diagram: 489948
Nominal cooling capacity: 10/13kW
Max. operating temperature: 90°C
Cooling agent: R449A
Max. filling weight: 13.6kg
CO2 equivalent: 19.07t
Global warming potential: 1397
Max. operating overpressure HP: 23bar
Max. operating overpressure LP: 10bar
Compressor circulatory: 102/121m³/h
Compressor speed: 1450/1750rpm
Compressor final pressure: 29.5bar
Important note:
Contains fluorinated greenhouse gas that is registered in the Kyoto Protocol!
