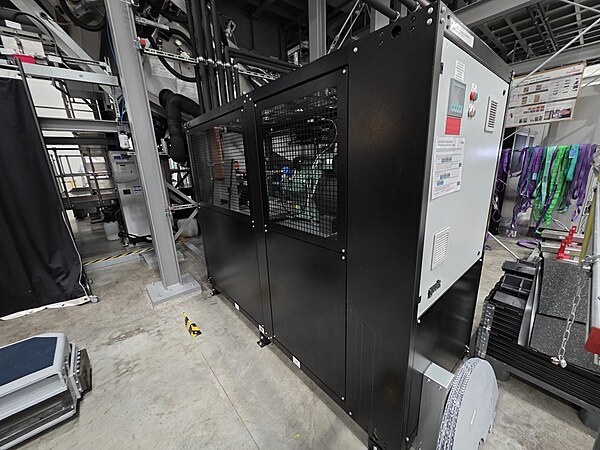

GWK weco 48.1 wzttx + twd 6, industrial cooling and heating unit
₹2,500,000.00
Article number:
DV10137
Manufacturer:
Gwk
Manufacturer number:
weco 48.1 wzttx + twd 6
Type:
weco e b 5x15 w m25 pt 4x x c x
YoM:
2018
Condition:
Used
Location
Germany
Availability:
immediately
Choose Quantity
Product Details

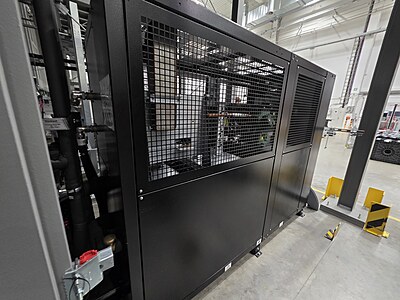

Gesellschaft Wärme-Kältetechnik mbH Compact refrigeration machine, industrial cooling and heating unit, weco 48.1 wzttx + twd 6, weco e b 5x15 w m25 pt 4x x c x
Model: weco481wzttx + twd6
Type: wecoeb5x15wm25pt4xxcx
Year of manufacture: 2018
General:
Industrial cooling and temperature control unit for regulating process media. Designed for high-temperature process cooling and temperature control applications.

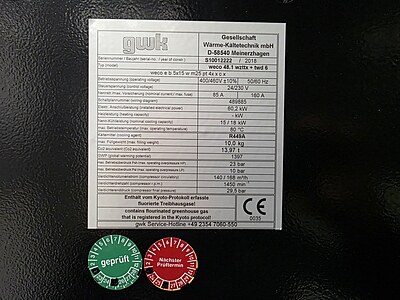

Technical data:
Operating voltage: 400/460V AC ±10%
Nominal current: 85A
Max. fuse: 160A
Frequency: 50/60Hz
Control voltage: 24/230V
Installed electrical power: 60.2kW
Wiring diagram: 489885
Nominal cooling capacity: 15/18kW
Max. operating temperature: 80°C
Cooling agent: R449A
Max. filling weight: 10kg
CO2 equivalent: 13.97t
Global warming potential: 1397
Max. operating overpressure HP: 23bar
Max. operating overpressure LP: 10bar
Compressor circulatory: 140/168m³/h
Compressor speed: 1450rpm
Compressor final pressure: 29.5bar
Important note:
Contains fluorinated greenhouse gas that is registered in the Kyoto Protocol!
