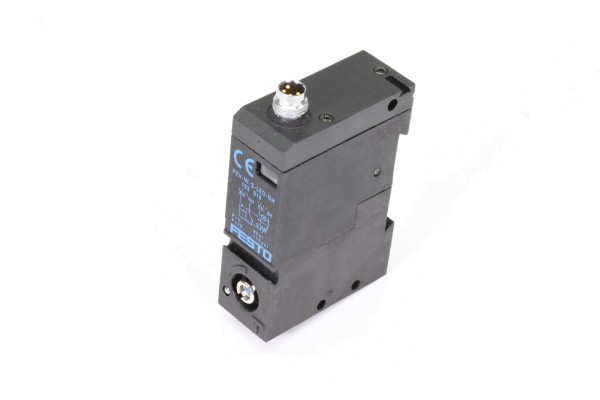

Festo Vertrieb GmbH & Co. KG Pressure switch, 152616, PEV W S LED GH
Model:
152616
Type:
PEVWSLEDGH
EAN/GTIN:
4052568070236
Condition:
Used
Technical Data:
10-30V DC
General:
Pressure measuring range: 2 bar ... 8 bar
Operating pressure: 0 bar ... 8 bar
Max. Overload pressure: 20 bar
Operating medium: Compressed air according to ISO 8573-1:2010 [7:-:-]
Medium temperature: 0 �C ... 60 �C
Switching element function: Changeover contact
Hysteresis: 0.5 bar ... 2 bar
Electrical connection: 4-pole, M8x1, plug
Mounting type: optional: with through-hole, with top-hat rail
Pneumatic connection: M5
Protection class: IP65
