PFEIFFER VACUUM PM P03 020 GA, TPH 2101 P, Turbomolecular Pump with electronic drive unit
₹100,000.00
Pfeiffer Vacuum PM P03 020 GA + PM C01 713 TPH 2101 P + TC 750
Article number:
DV10077
Manufacturer:
Pfeiffer Vacuum
Manufacturer number:
PM P03 020 GA + PM C01 713
Type:
TPH 2101 P + TC 750
Serial number:
15040169 + 0805014349
Hours of operation:
ca. 13.000h
Condition:
Used
Location
Germany
Availability:
immediately
Choose Quantity
Product Details

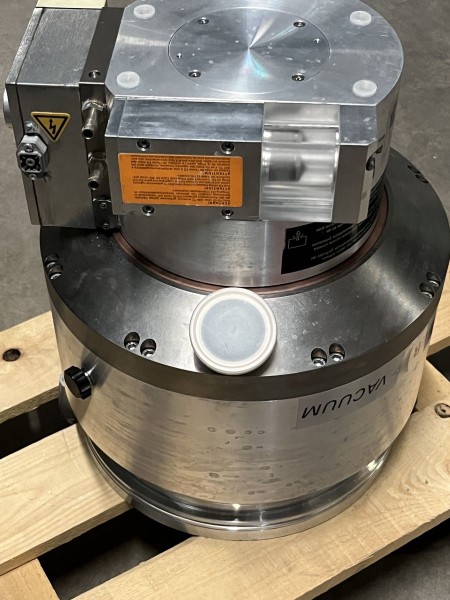

Pfeiffer Vacuum GmbH Turbomolecular pump with electronic drive unit, PM P03 020 GA, TPH 2101 P + PM C01 713, TC 750
Model Turbomolecular Pump: PMP03020GA, TPH2101P
Model Electronic drive unit: PMC01713, TC750
Turbo molecular pump:
Serial number: 15040169
Nominal connection size inlet: DN 250 ISO-K
Nominal connection size outlet: DN 40 ISO-KF
Flood connection: G1/8"
Rated speed: 31.500/min (525Hz)
Pumping speed N2: 1.900l/s
Max. Prevacuum pressure N2: 1,5mbar
Max. Prevacuum pressure He: 1,0mbar
Max. Prevacuum pressure H2: 0,5mbar
Oil: PM 016 144-T
Drive electronics:
Serial number: 0805014349
Input: 24/48/72/140V DC +/-5%, 5,4A
Output: 0-140V AC, 0-1600Hz, 6.5A
Note on condition:
1. statements on the operation hour time is about 13,000h with about 1,600 start-up and shut-down.
2. process gases: nitrogen and argon
3. process dusts: chromium nitrite and steel 100Cr6
4. the pump was stored fully functional in 2018 and externally cleaned.
