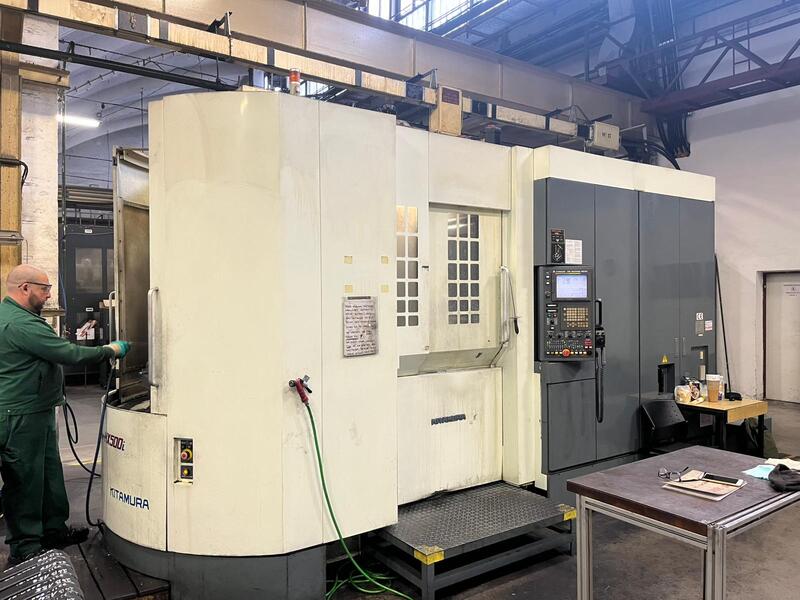

Kitamura Mycenter-HX500i Horizontal Machining Center
₹6,500,000.00
Model: Mycenter-HX500i
Manufacturer: Kitamura Machinery Co., Ltd., Japan
CNC Control: FANUC 16i-MB
Choose Quantity
Product Details
Specifications:
Model: Mycenter-HX500i
Manufacturer: Kitamura Machinery Co., Ltd., Japan
CNC Control: FANUC 16i-MB
Spindle:
Speed: 12,000 RPM
Taper: BT50
Drive Power: 26 kW
Coolant Through Spindle
Axes Travel:
X-axis: 876 mm
Y-axis: 711 mm
Z-axis: 660 mm
Feed Rates:
Cutting Feed Rate: 60 m/min
Rapid Traverse: 60 m/min

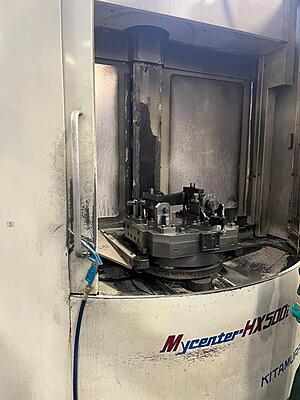

Rotary Table (B-axis): Full 360,000 positions

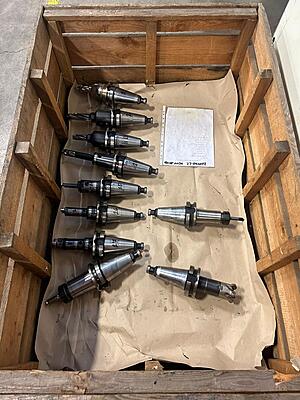

Tool Specifications:
Automatic Tool Changer (ATC): 50 tools
Max Tool Diameter: Ø125 mm
Max Tool Weight: 20 kg
Pallet System:
Number of Pallets: 2
Pallet Size: 500×500 mm

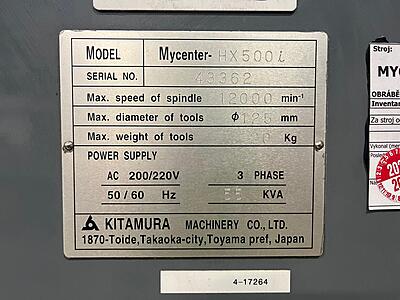

Power Supply: AC 200/220V, 3 Phase, 50/60 Hz, 55 KVA
Additional Features:

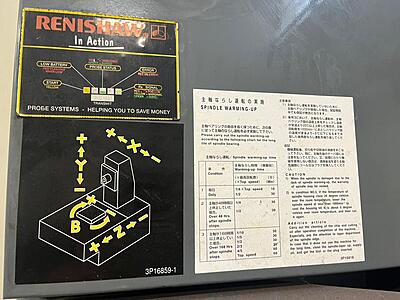

RENISHAW Probe System for Precision Measurement

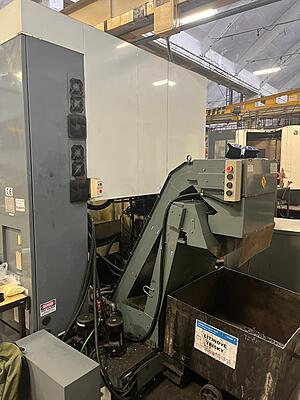

Chip Conveyor Included
