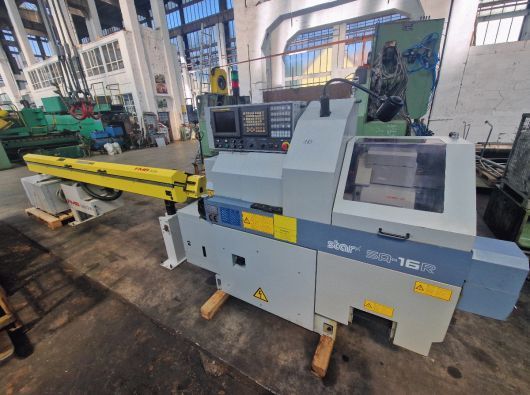

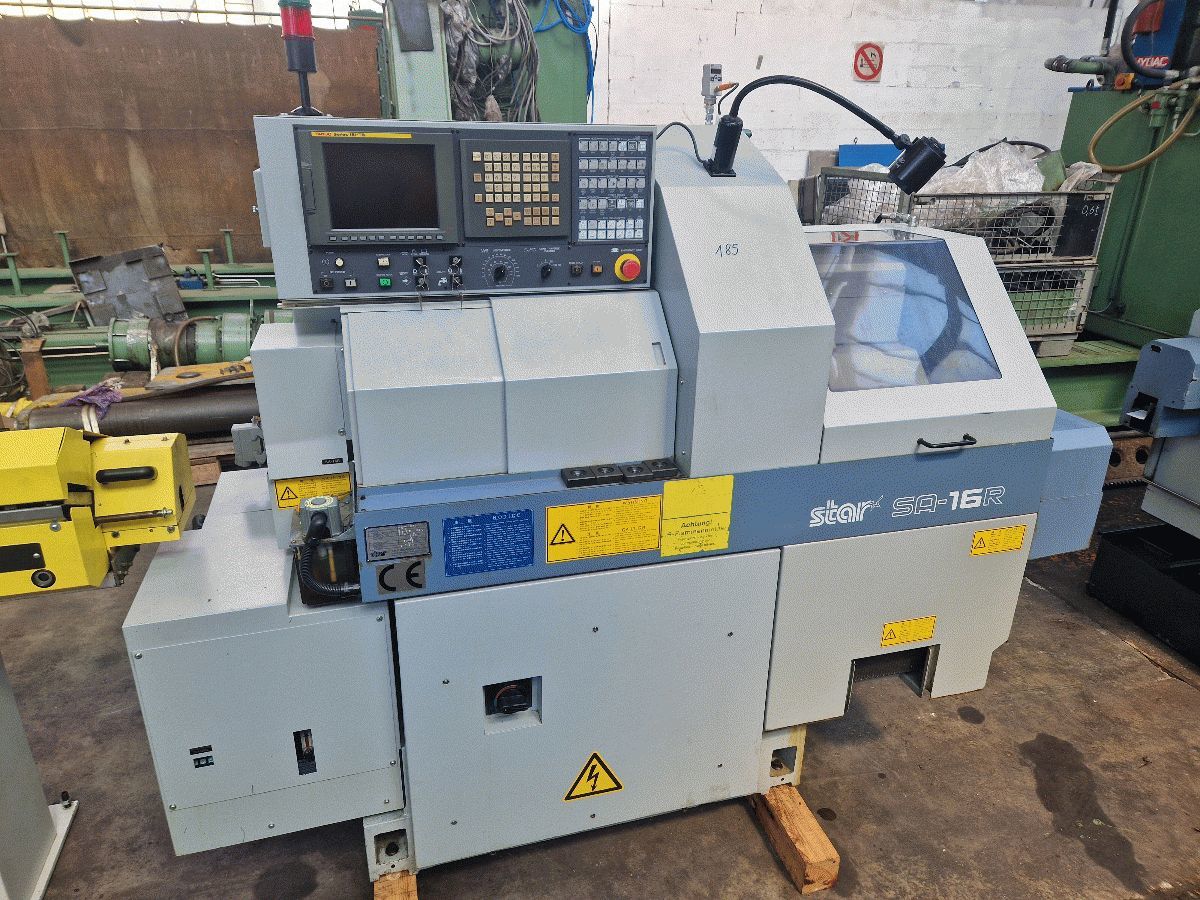

Swiss- type automatic lathe with bar loader Star SA-16RC
₹100,000.00
| Machine type: | lathes |
| Make: | star |
| Type: | SA-16RC |
| Control type: | Fanuc Series 18i-TB |
| Storage location: | from location |
| Country of origin: | Germany |
| Delivery time: | according to the arrangement |
| freight base: | EXW - ex warehouse (free on loading) |
Choose Quantity
Product Details
| Manufacturer: | Star + FMB |
| Type: | SA-16RC + turbo 2- 16 |
| Year of construction: | 2007/2 |
| Steering: | Fanuc Series 18i - TB |
| Number of spindles: | 2 |
| Maximum turning diameter: | 16 mm |
| Max. drilling diameter: | 7 mm |
| Thread diameter max.: | M 6 (Metric) |
| Spindle speeds: | Continuously variable from 500 rpm to 12000 rpm |
| Spindle power: | 2.2 kW |
| Counter spindle speeds: | from 500 rpm to 9000 rpm |
| Thread diameter: | M 6 (Metric) |
| Workpiece length for counter-machining max.: | 85 mm |
| Speeds of driven tools: | 7500 rpm |
| Performance of rotating tools: | 0.4 kW |
| Drill diameter: | max. 4 mm |
| Thread diameter: | M 3 (Metric) |
| Tool shank cross-section: | 10 mm |
| Collet holder type: | ER 11 |
| rapid traverse: | 20 m/min |
| Cutting speed: | 10000 mm/min |
| Connection: | 50 Hz 3x 400 Volt |
| spindle motor: | 2.2 / 3.7 kW |
| Counter spindle performance: | 1.1 / 0.5 kW |
| Connection to compressed air: | 5 bar |
| Total power requirement: | 6 kVA |
| Machine weight approx.: | 1700 kg |

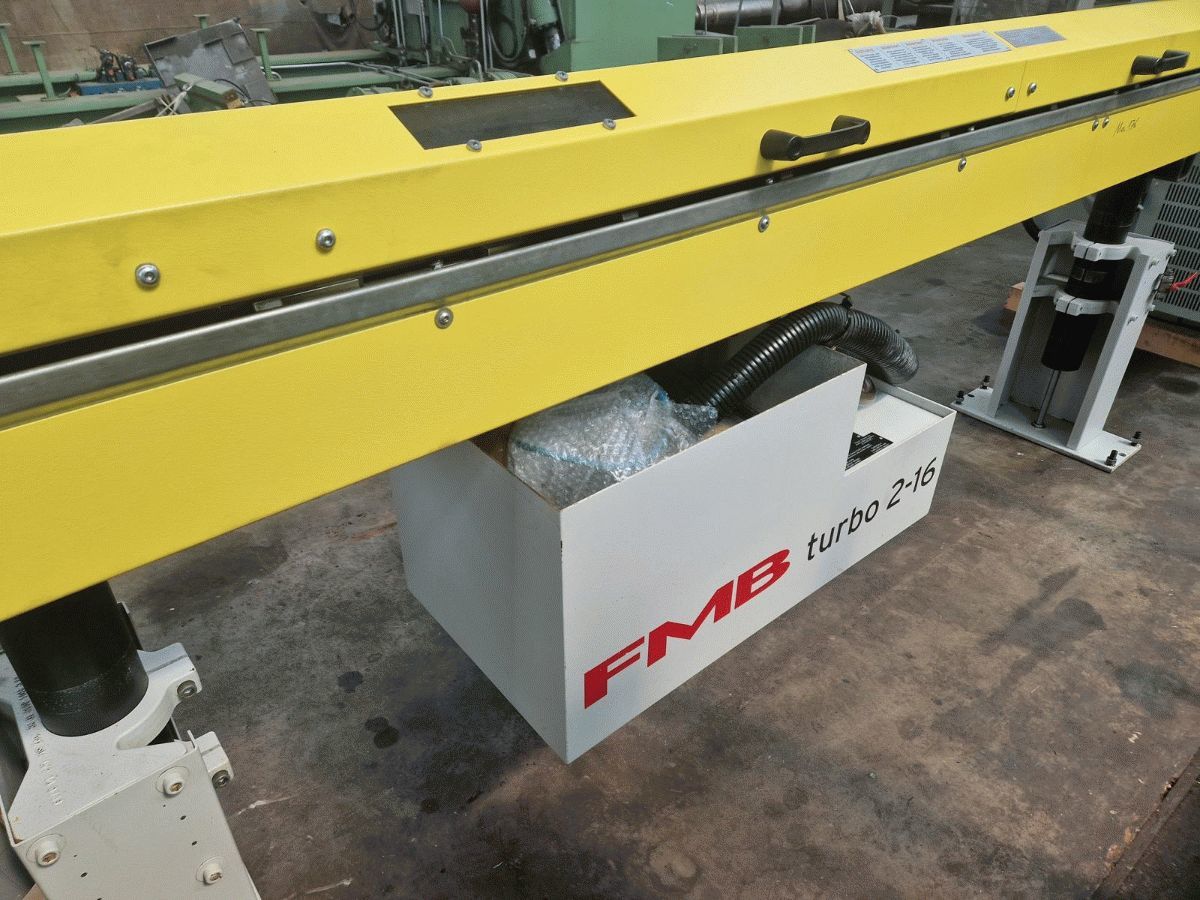

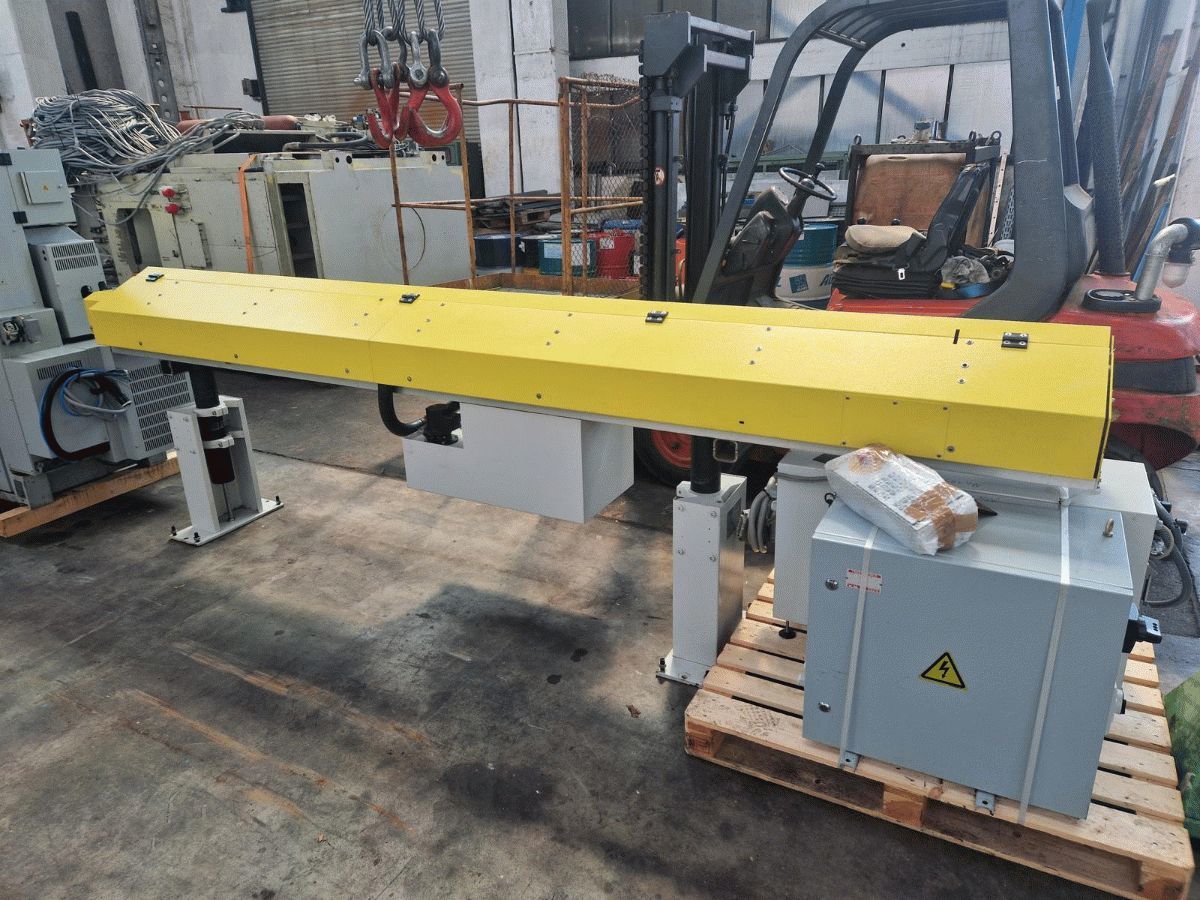

| Length of the bars for the bar loader: | 3,200 mm |
