LEYBOLD 504112V904, WHU2500/DV650S/A, Vacuum pump system RUTA
₹9,000,000.00
Article number:
DV10126
Manufacturer:
Oerlikon Leybold Vacuum
Manufacturer number:
504112V904
Type:
WHU2500/DV650S/A
Hours of operation:
25.000/50.000h
YoM:
2018
Condition:
Used
Location
Germany
Availability:
immediately
Choose Quantity
Product Details

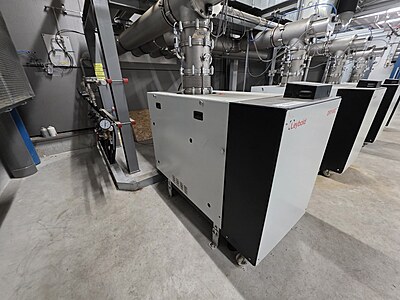

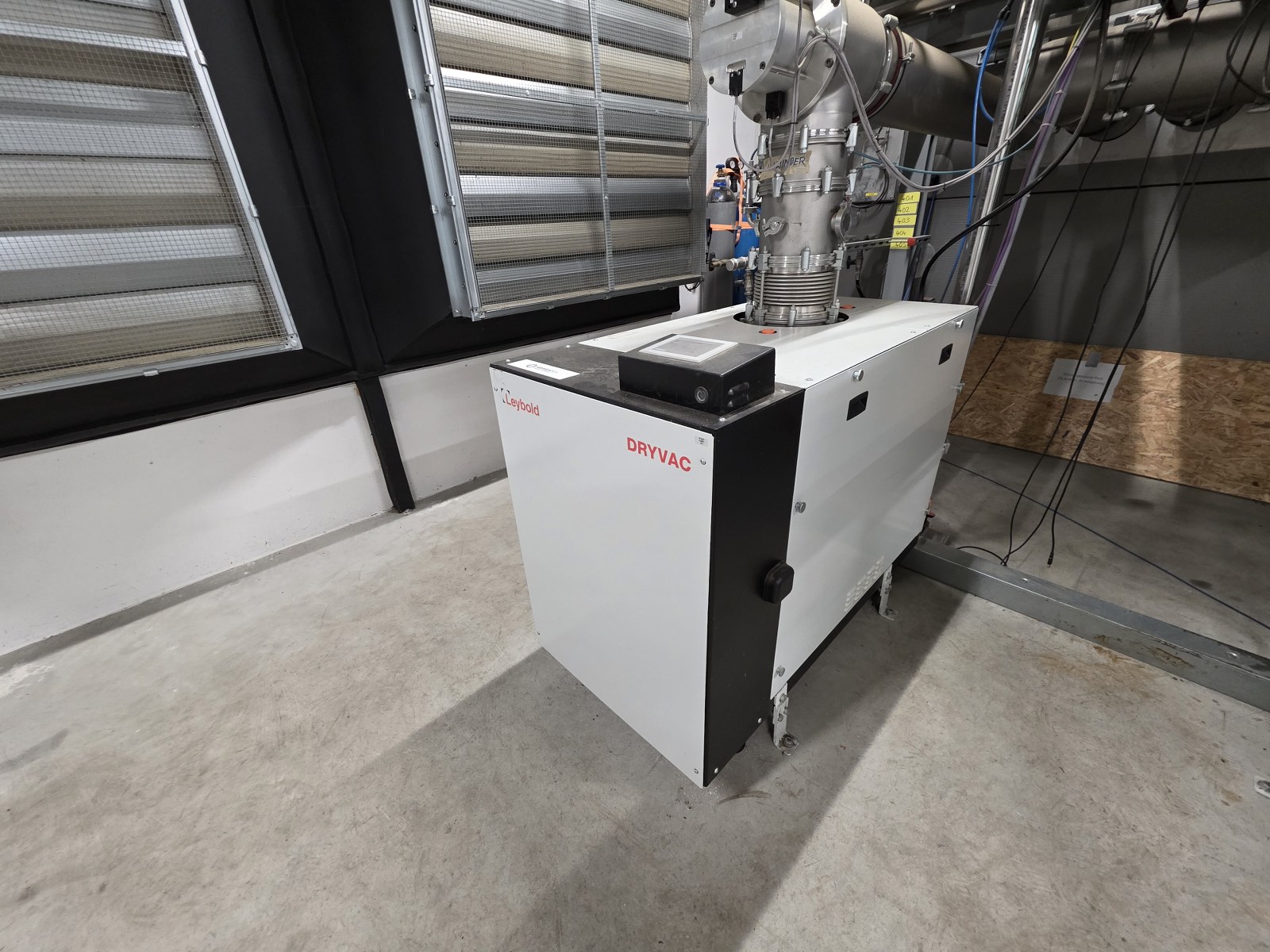

Oerlikon Leybold Vacuum RUTA series vacuum pump system from Leybold, consisting of a WHU 2500 Roots blower unit combined with a DV650S screw backing pump, 504112V904, WHU2500 DV650S A
Model: 504112V904
Type: WHU2500DV650SA
Year of manufacture: 2018
Pump operating hours: approx. 25,000h
Controller operating hours: approx. 50,000h
Series / Components:
WHU 2500: Roots blower/blower from the “RUVAC WH/WHU” series.
DV650S: Screw (dry screw) backing pump with approx. 650m³/h nominal suction capacity.
Technical data:
Nominal voltage: 400-460V AC, 3-phase, 50/60Hz.
Nominal power: 34.3kW
Nominal current: 43A
Control voltage: 24V DC
Performance data & technical parameters (derived):
WHU 2500 Nominal delivery rate approx. 430 m³/h (at 50 Hz) for the WH/WHU 2500 version.
Inlet flange DN 250 ISO-K, outlet flange DN 100 ISO-K for WHU 2500.
Water cooling of the motor/system. DV650S: Nominal 650 m³/h suction capacity at approx. 5×10⁻³ mbar ultimate vacuum.
Model: 504112V904
Type: WHU2500DV650SA
Year of manufacture: 2018
Pump operating hours: approx. 25,000h
Controller operating hours: approx. 50,000h
Series / Components:
WHU 2500: Roots blower/blower from the “RUVAC WH/WHU” series.
DV650S: Screw (dry screw) backing pump with approx. 650m³/h nominal suction capacity.
Technical data:
Nominal voltage: 400-460V AC, 3-phase, 50/60Hz.
Nominal power: 34.3kW
Nominal current: 43A
Control voltage: 24V DC
Performance data & technical parameters (derived):
WHU 2500 Nominal delivery rate approx. 430 m³/h (at 50 Hz) for the WH/WHU 2500 version.
Inlet flange DN 250 ISO-K, outlet flange DN 100 ISO-K for WHU 2500.
Water cooling of the motor/system. DV650S: Nominal 650 m³/h suction capacity at approx. 5×10⁻³ mbar ultimate vacuum.
