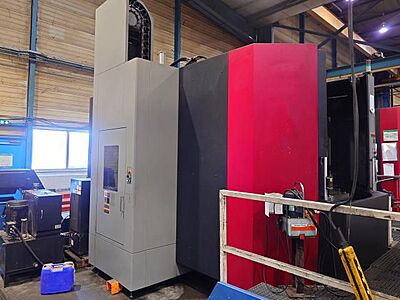

OKK HM 630 - Horizontal Machining Center

Technical Specifications:

• Axes: 4
• Milling Spindle:
  • Tool Holder Type: BT50
  • Spindle Power: 25 / 30 kW
  • Spindle Speed: 12,000 rpm
• Linear Axes (X/Y/Z):
  • Travel: 1,050 × 900 × 900 mm
  • Rapid Traverses (X/Y/Z): 54 m/min
  • Cutting Feed Rate (X/Y/Z): 1 - 40,000 mm/min
• Rotary Axis (B):
  • Travel: 360°
  • Indexing Precision: 0.001°
• Tool Changer:
  • Auto Tool Changer Type: Bras Chargeur
  • Tool Magazine Capacity: 50 tools
  • Tool Exchange Time: 4.4 sec

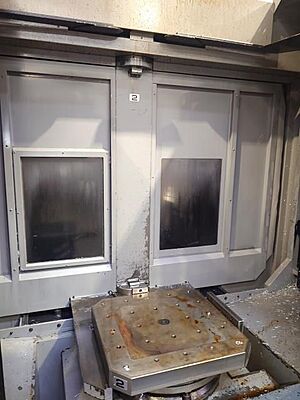

• Pallet Changer:
  • Type: Rotopalette
  • Pallet Changing Device Time: 12 sec
  • Pallet Size: 630 × 630 mm
  • Number of Pallets: 2
  • Max Weight on Pallet: 1,300 kg
  • Distance Table/Spindle Axis (Min/Max): 80 - 980 mm
  • Distance Table Center/Spindle Nose (Min/Max): 200 - 1,100 mm

Power Supply:

• Supply Voltage: 380V
• Installed Power: 65 kVA

Weight & Dimensions:

• Machine Floor Space: 5,450 × 3,420 mm
• Machine Height: 3,430 mm
• Machine Weight: 18,000 kg

Equipment:

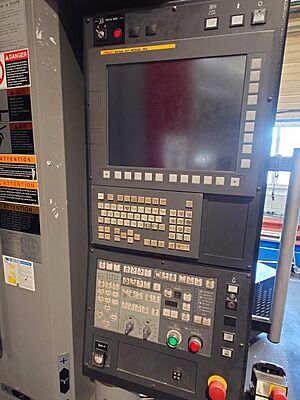

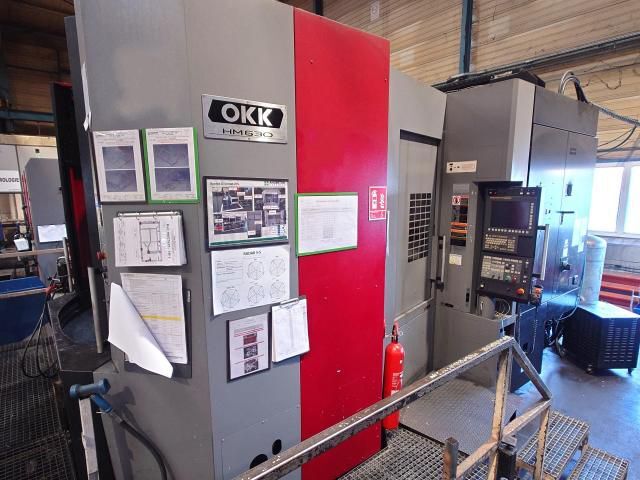

• CNC: Fanuc 31i-Model B5
• Interface: RS232 / USB / PCMCIA
• Electronic Handwheel
• Coolant Tank with High-Pressure Pump
• Coolant Through Spindle
• Spindle Cooling Unit
• Chips Conveyor
• Electric Transformer: HAKUSAN
