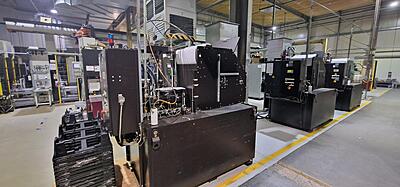

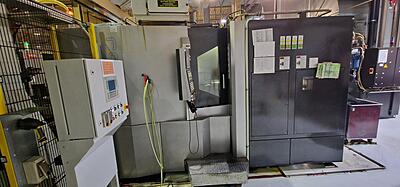

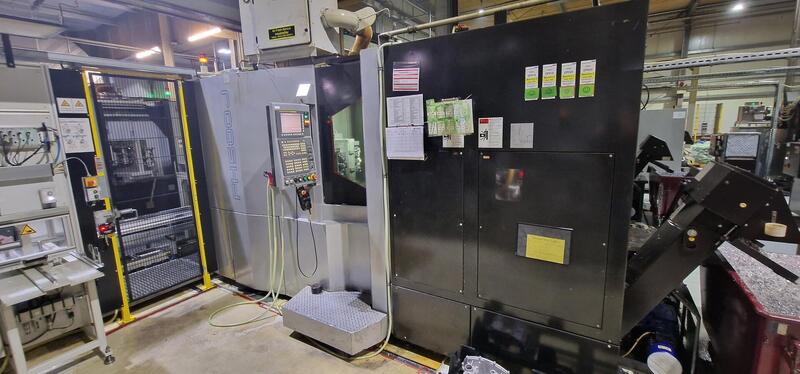

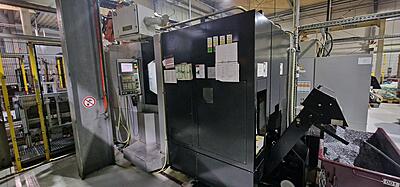

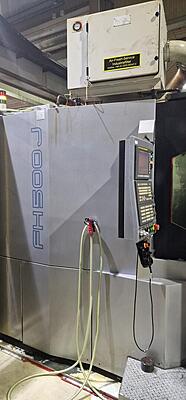

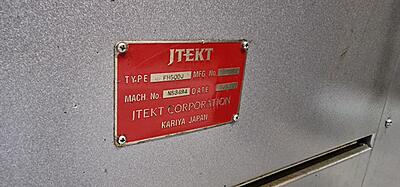

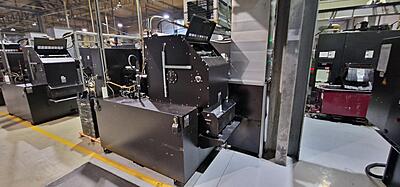

TOYODA FH500J Horizontal Machining Center
₹4,500,000.00

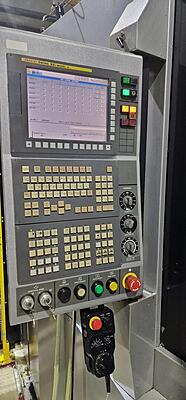

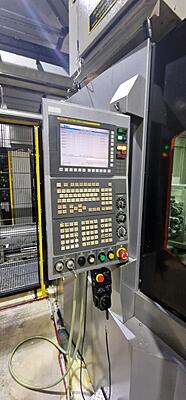

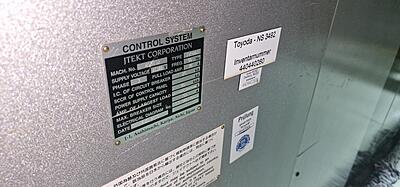

Machine comes with CNC control: Fanuc 32i for precise control and efficient machining
Year: 2010
Location: Germany
Quantity : 3 Nos

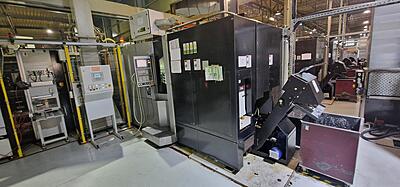

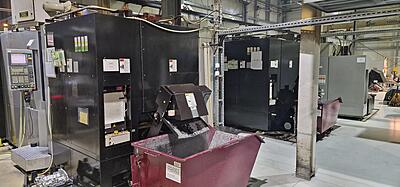

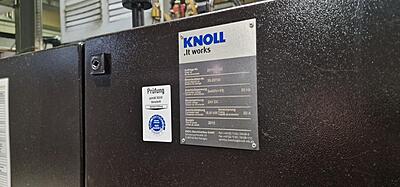

Each machine comes with Chip Conveyor and Filter- and Cooling Unit
CNC Toyoda FH500j Manual
Year: 2010
Location: Germany
Quantity : 3 Nos
Each machine comes with Chip Conveyor and Filter- and Cooling Unit
CNC Toyoda FH500j Manual
Choose Quantity
Product Details

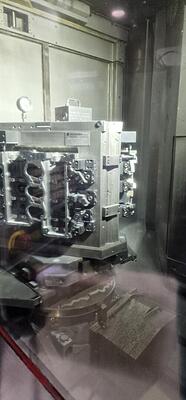

Technical data of the FH500J horizontal machining center
Tool holder: 500 mm
Rotation angle of the rotary table: 0.001°
Table height (pallet): 1100 mm
Traverse paths:
X-axis: 730 mm
Y-axis: 730 mm
Z-axis: 850 mm
Distance (spindle tip to table hub): 100-950 mm
Distance (spindle axis to the top of the workpiece holder): 50-780 mm
Feed rates:
Fast feed (X, Y, Z): 60 m/min
Fast feed (B-axis): 14400°/min
Work feed (X, Y, Z): 0.001-30 m/min

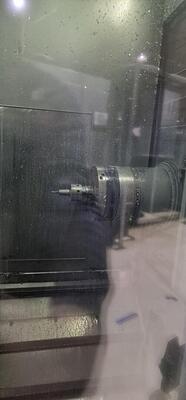

Spindle for different machining requirements:
Speed range: 50-15000 rpm
Diameter (inside of front bearing): 80 mm
Spindle mount: ISO R297, Taper #40
Tool system:
Number of tools: 60
Tool dimensions: Ø75 × 470 mm
Maximum tool weight: 8 kg
Tool change time: 0.9 seconds (from tool to tool)
Motors:
Spindle motor: 22/18.5 kW (15 minutes/continuous operation)
Hydraulic pump motor: 2.2 kW (4 hp)
Machine size and weight:
Footprint: 2330 × 4530 mm
Machine weight: 13500 kg
Fluid and air requirements:
Operating oil: 18 L
Spindle cooling oil: 15 L
Compressed air: 800 NL/min (0.4-0.5 MPa)
Electrical connection: 51 kVA
Precision:
Positioning accuracy: ±0.003 mm
Repeat accuracy: ±0.0015 mm
Tool holder: 500 mm
Rotation angle of the rotary table: 0.001°
Table height (pallet): 1100 mm
Traverse paths:
X-axis: 730 mm
Y-axis: 730 mm
Z-axis: 850 mm
Distance (spindle tip to table hub): 100-950 mm
Distance (spindle axis to the top of the workpiece holder): 50-780 mm
Feed rates:
Fast feed (X, Y, Z): 60 m/min
Fast feed (B-axis): 14400°/min
Work feed (X, Y, Z): 0.001-30 m/min
Spindle for different machining requirements:
Speed range: 50-15000 rpm
Diameter (inside of front bearing): 80 mm
Spindle mount: ISO R297, Taper #40
Tool system:
Number of tools: 60
Tool dimensions: Ø75 × 470 mm
Maximum tool weight: 8 kg
Tool change time: 0.9 seconds (from tool to tool)
Motors:
Spindle motor: 22/18.5 kW (15 minutes/continuous operation)
Hydraulic pump motor: 2.2 kW (4 hp)
Machine size and weight:
Footprint: 2330 × 4530 mm
Machine weight: 13500 kg
Fluid and air requirements:
Operating oil: 18 L
Spindle cooling oil: 15 L
Compressed air: 800 NL/min (0.4-0.5 MPa)
Electrical connection: 51 kVA
Precision:
Positioning accuracy: ±0.003 mm
Repeat accuracy: ±0.0015 mm
Maximum load: 500 kg on the work table.
